The TD-27 V-Drums module is loaded with the finest acoustic drum sounds you've ever heard. Roland's Prismatic Sound Modeling produces drums that not only sound exceptional, but also respond just like real acoustic instruments when you play them. Advanced digital trigger inputs support Roland digital pads for unmatched expression, while new PureAcoustic Ambience Technology offers a variety of inspiring drumming spaces at the touch of a button. A wide selection of electronic sounds from Roland's rich sonic history are also included, providing must-have sounds for modern styles. And by loading and layering your own samples with internal drums, you're able to craft sounds that no other drummer can claim.
Advanced sound module with Prismatic Sound Modeling derived from the flagship TD-50
Three digital trigger inputs for advanced Roland trigger pads like the 14” PD-140DS digital snare and 18” CY-18DR digital ride cymbal
Hands-on interface for quick-and-easy selecting and personalizing drum sounds
Drum in inspiring sound spaces with newly developed PureAcoustic Ambience Technology
Overhead mic simulator and studio-level effects for processing drum sounds
Import your own WAV samples via an SD card
Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
Integrated 28-channel USB audio interface for professional computer music production
Multi-pin trigger jack and included cable for connecting with a standard V-Drums pad setup
Dedicated Crash 2 trigger input and three auxiliary trigger inputs for easy kit expansion
Onboard Bluetooth for drumming with music from a smartphone or laptop
Built-in practice functions for developing drumming skills
Drum Kits
100 (Preset: 55)
Instruments
728
Instrument Parameters
Level (Volume), Pan, Tuning, Muffling, Snare Buzz, Strainer
User Sample Import
Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
Effect Types
Pad Compressor: each pad
Pad Equalizer: each pad
Overhead Mic Simulator
Room/Reverb
Multi-Effects: 3 systems, 30 types
Master Compressor
Master Equalizer
Bluetooth
Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Song Player (SD Card)
File format: WAV (44.1 kHz, 16/24 bits), MP3 *1
Recorder
Recording Method: Realtime
Maximum length: 60 min (temporary recording: 3 min) *2
File format: WAV (44.1 kHz, 16 bits)
Display
Graphic LCD 256 x 80 dots
External Memory
SD Card (SDHC supported)

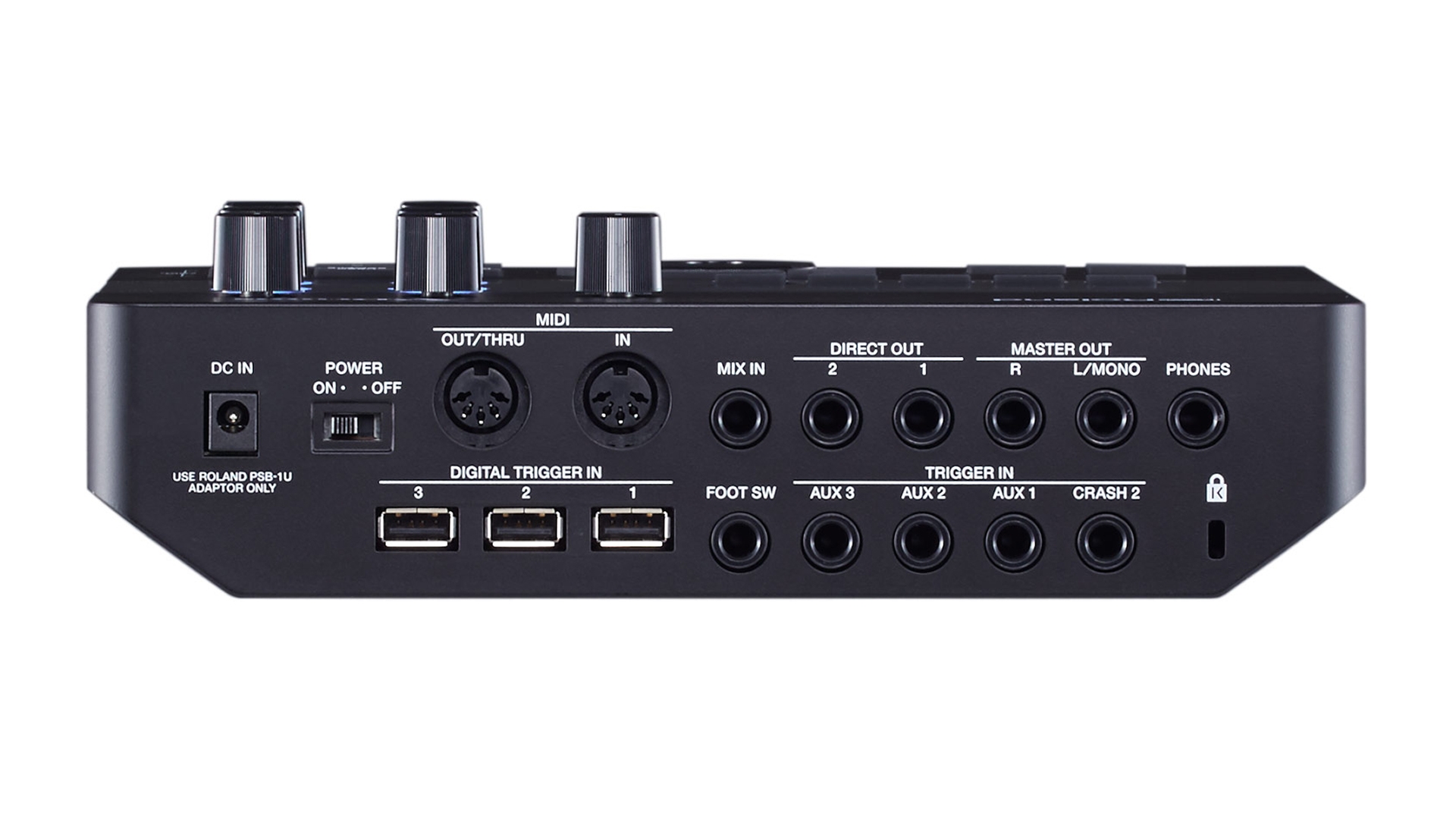

Connectors
TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) *3
TRIGGER IN jack x 4: 1/4-inch TRS phone type (CRASH 2, AUX1, AUX2, AUX3) *3
DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT jacks (L/MONO, R): 1/4-inch phone type
DIRECT OUT jack x 2 (MONO): 1/4-inch phone type
PHONES jack x 1: Stereo 1/4-inch phone type
MIX IN jack x 1: Stereo 1/4-inch phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port x 1: USB B type
FOOT SW jack x 1: 1/4-inch TRS phone type
DC IN jack
USB COMPUTER
Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *4
USB Audio
Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 28 channels
Playback: 4 channels
Power Supply
AC adaptor (DC 9 V)
Current Draw
770 mA
OTHER
Accessories
Quick Start
AC adaptor
Special connection cable
Leaflet ’œUSING THE UNIT SAFELY”
Sound module mounting plate
Wing bolt (M5 x 10) x 2
Options (sold separately)
Pads: PD series, PDX series, BT series
Cymbals: CY series
Kick: KD series, KT series
Hi-hat: VH-13, VH-11, VH-10
Hi-hat control pedal: FD series
Acoustic drum trigger: RT series
Footswitch: BOSS FS-5U, FS-6
Personal drum monitor: PM series
Noise eater: NE series
SIZE AND WEIGHT
Dimensions
238 (W) x 204 (D) x 79 (H) mm
Weight (excluding AC adaptor)
1.1 kg
