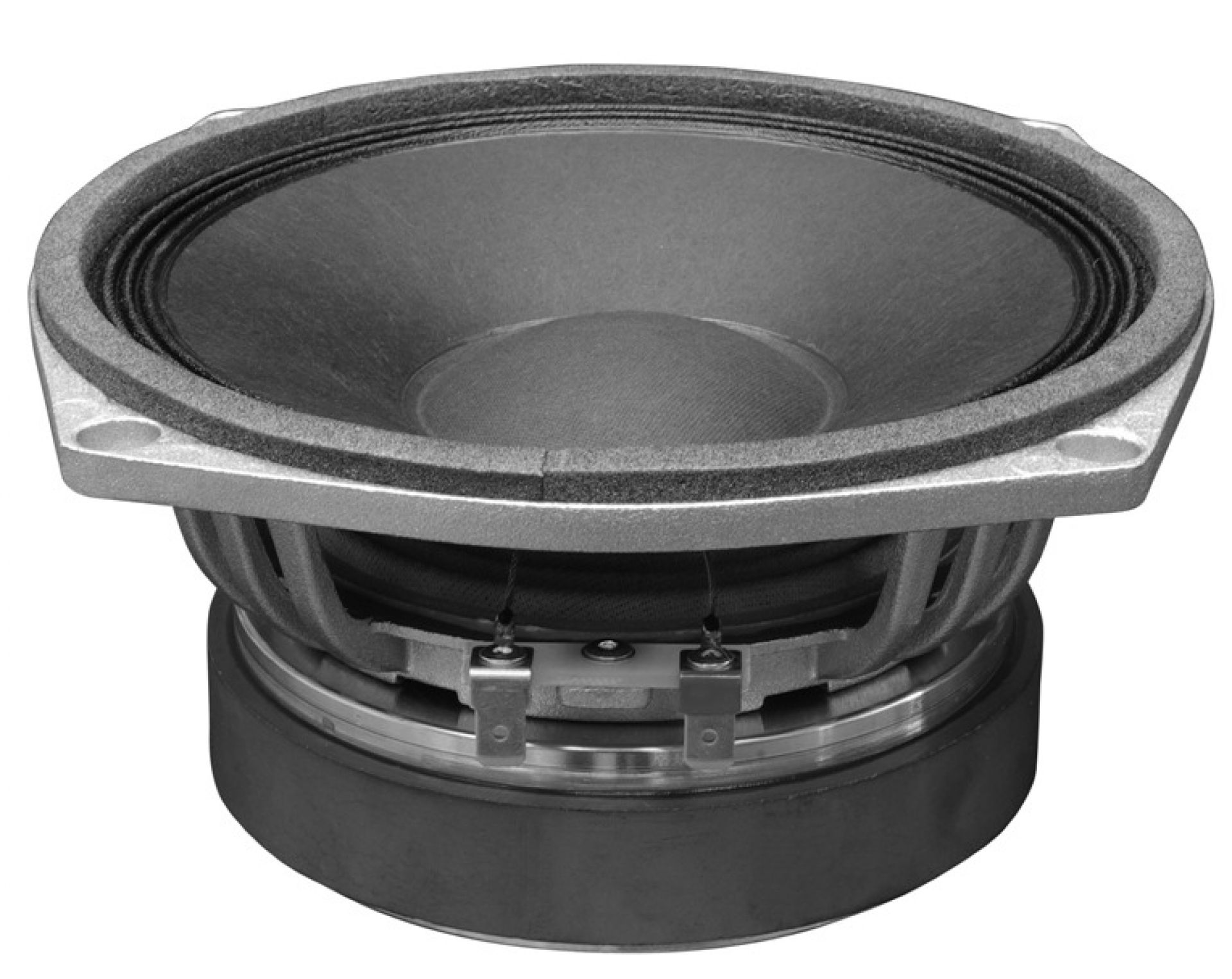

The 6M150 is high efficiency, high power midrange loudspeaker , specially designed to use in 3 way boxes and line array systems. It features 44 mm aluminium voice coil, vented aluminium die cast frame with powerful 121 mm ferrite magnet structure, which achieved compact size of the speaker.
Shape Non cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 6.5 inch, 7.5 inch
Front chape Non cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 150 W
Max power handling 300 W
Sensitivity 96 dB

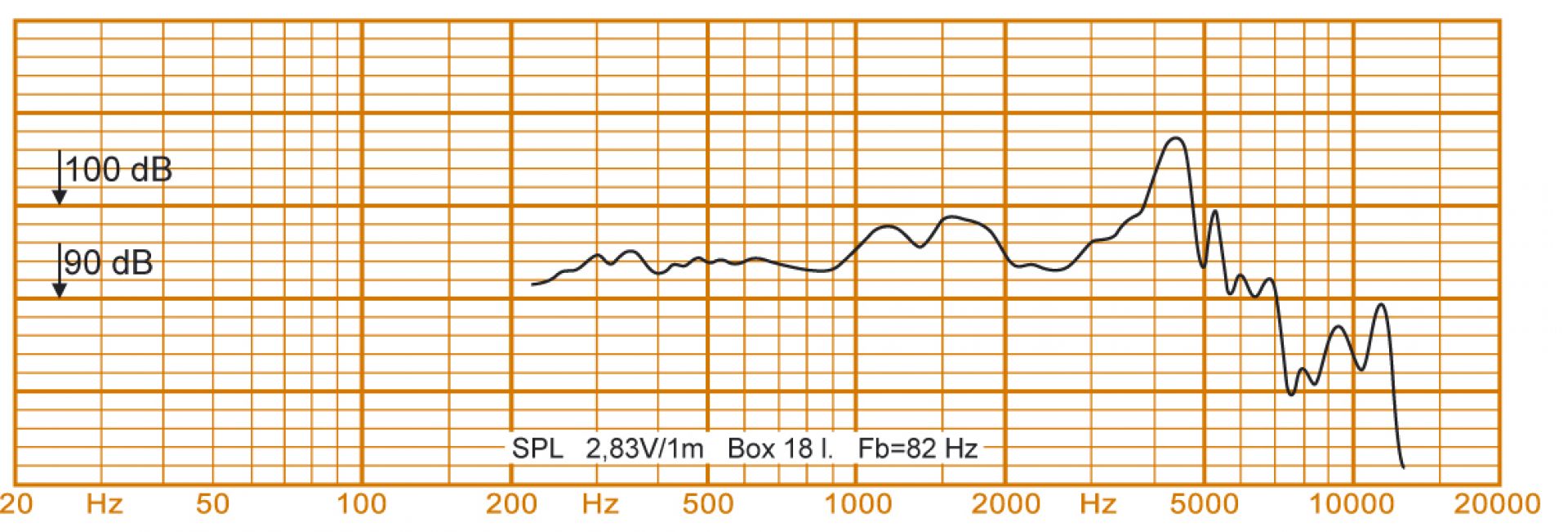

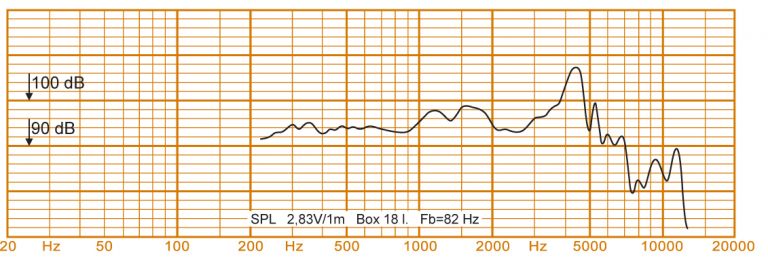

Frequency response 200-5000 Hz
Voice coil diameter 1.73 inch

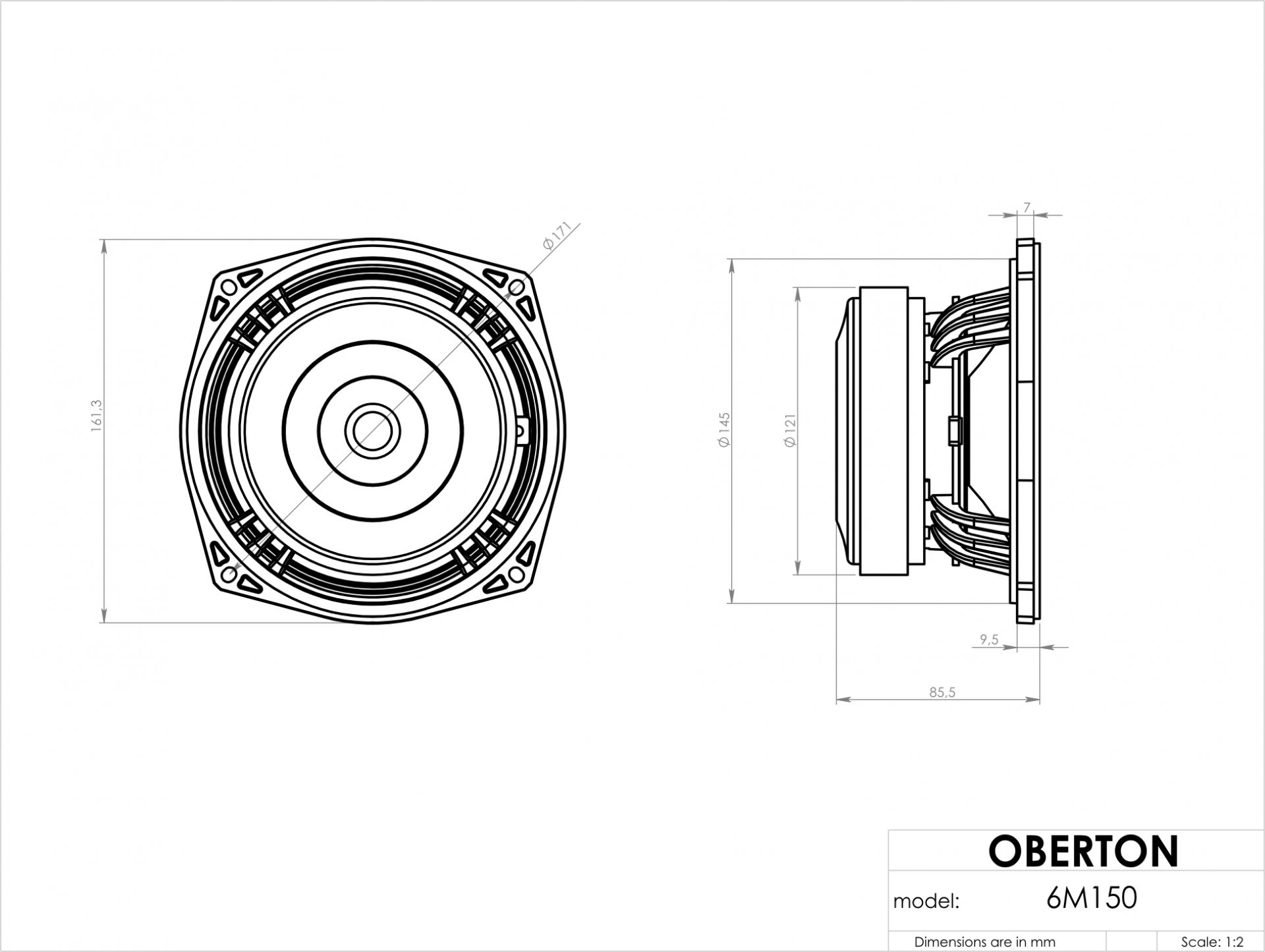

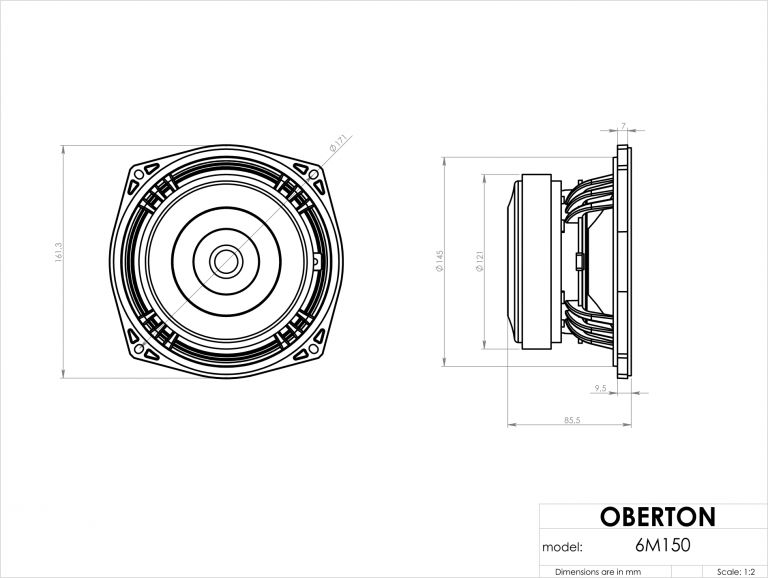

Total external dimensions 161.3 mm / 185 mm
Mounting diametre 145 mm
Depth after front 76 mm
Front thickness 9.5 mm
Diamètre aimant (mm) 121 mm
Weight 2.55 kg
Fs 115.1 Hz
Re 6.21 ohm
Qes 0.457
Qms 5.46
Qts 0.422
Vas 5.35 L
Xmax 2.25 mm
Mms 10.22 gr
Le 0.438 mH
EBP 252
Shipping weight 2.55 kg
