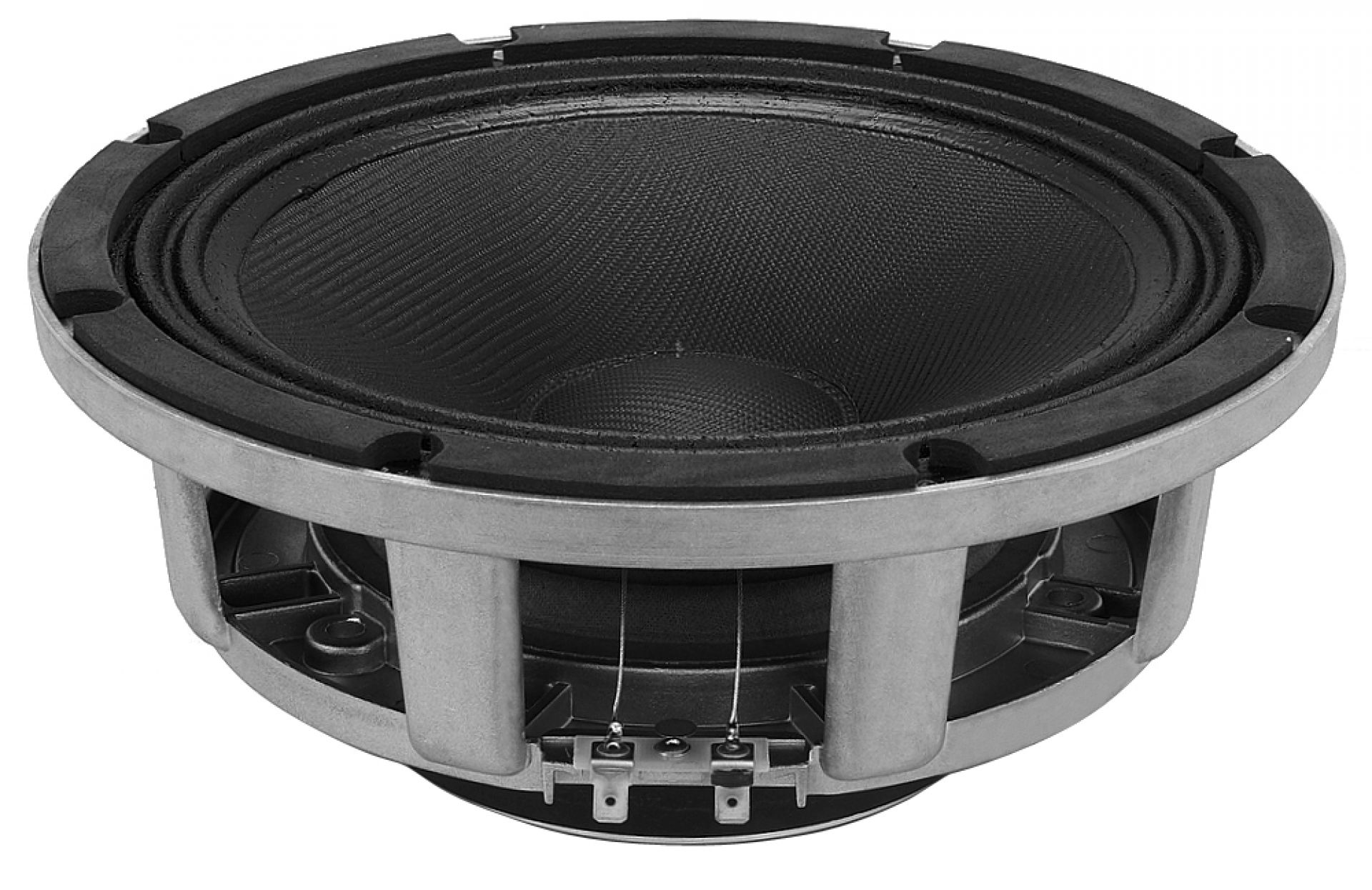

The 10B200 loudspeaker is designed special for use in high quality compact 2-way boxes for indoor and outdoor application. It features 51 mm voice coil, 134 mm magnet structure, die cast aluminium frame and glass fiber cone.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 10.5 inch
Front chape Cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 200 W
Max power handling 400 W
Sensitivity 93 dB

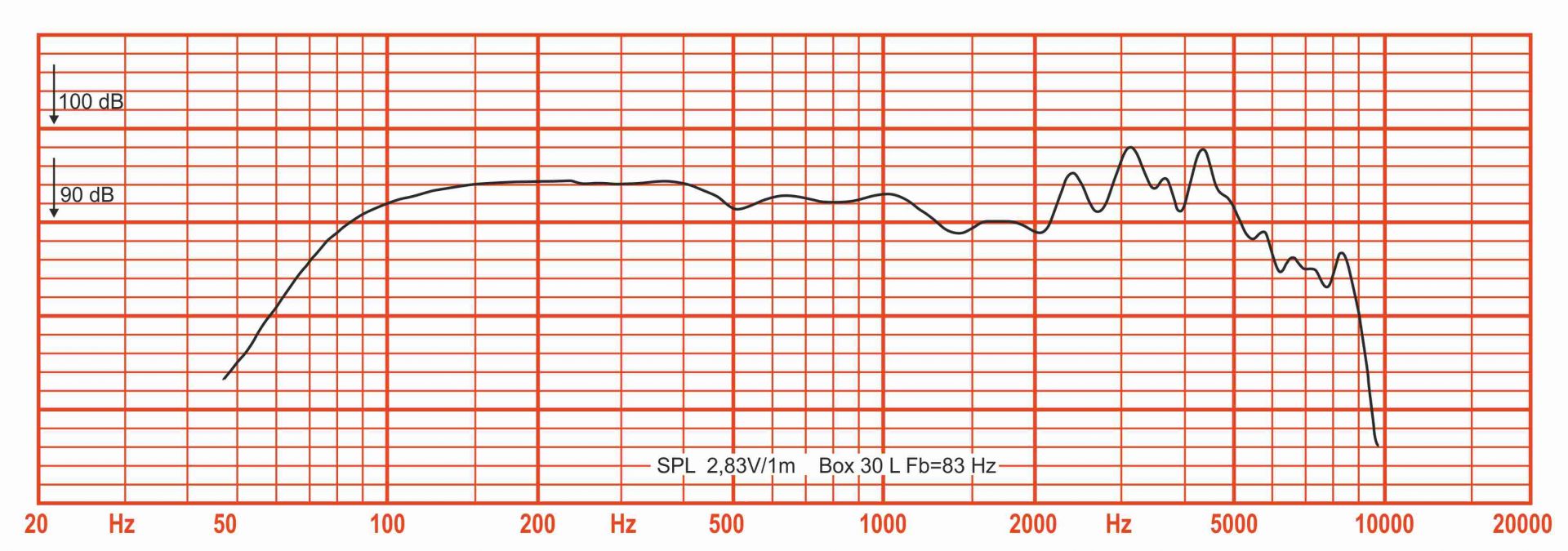

Frequency response 45-3000 Hz
Voice coil diameter 2 inch

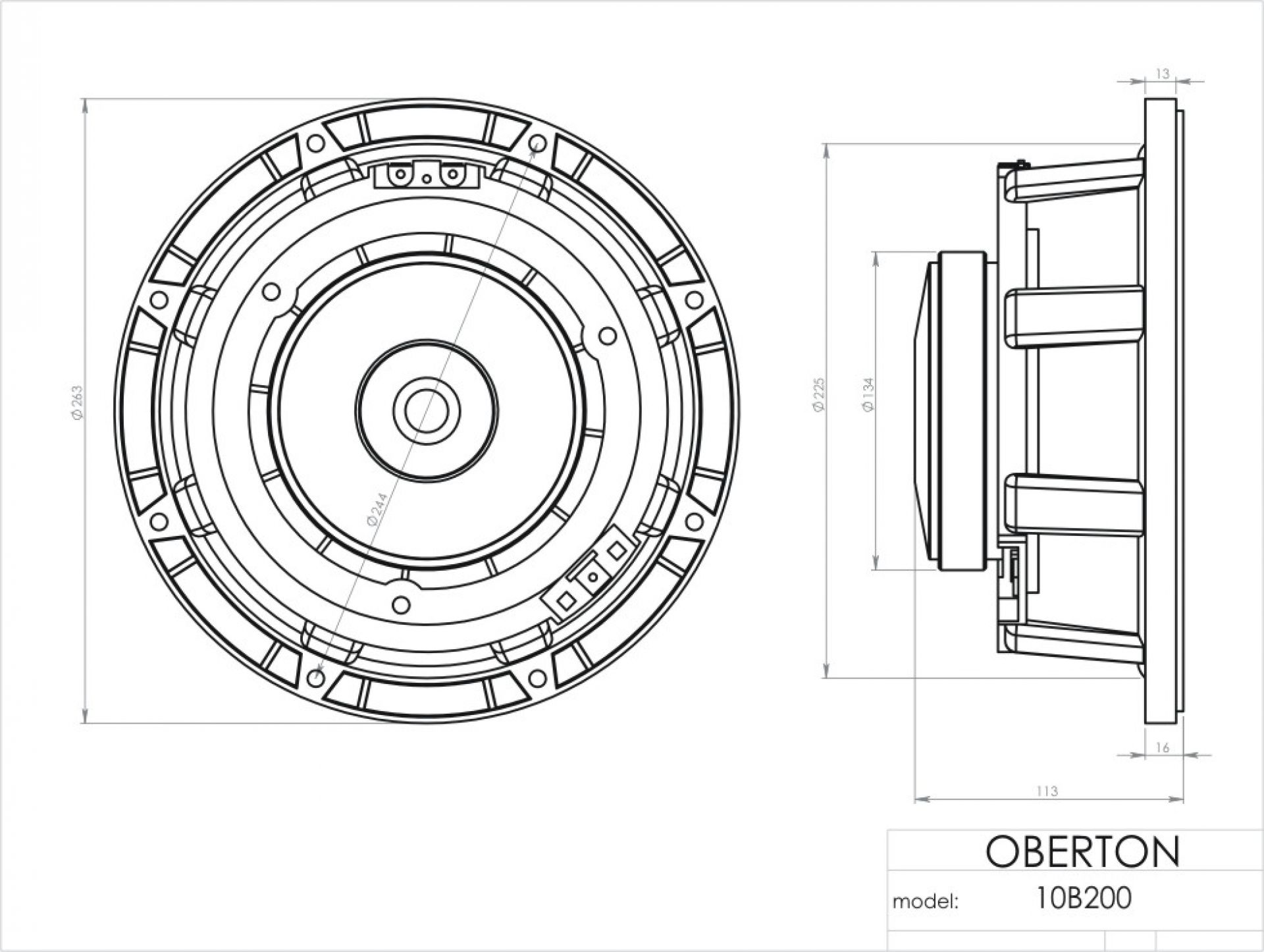

External diametre 263 mm
Mounting diametre 225 mm
Depth after front 97 mm
Front thickness 16 mm
Diamètre aimant (mm) 134 mm
Weight 3.6 kg
Fs 47.88 Hz
Re 5.1 ohm
Qes 0.341
Qms 9.27
Qts 0.329
Vas 36.21 L
Xmax 5.75 mm
Mms 43.75 gr
Le 0.84 mH
EBP 140
Shipping weight 3.6 kg
