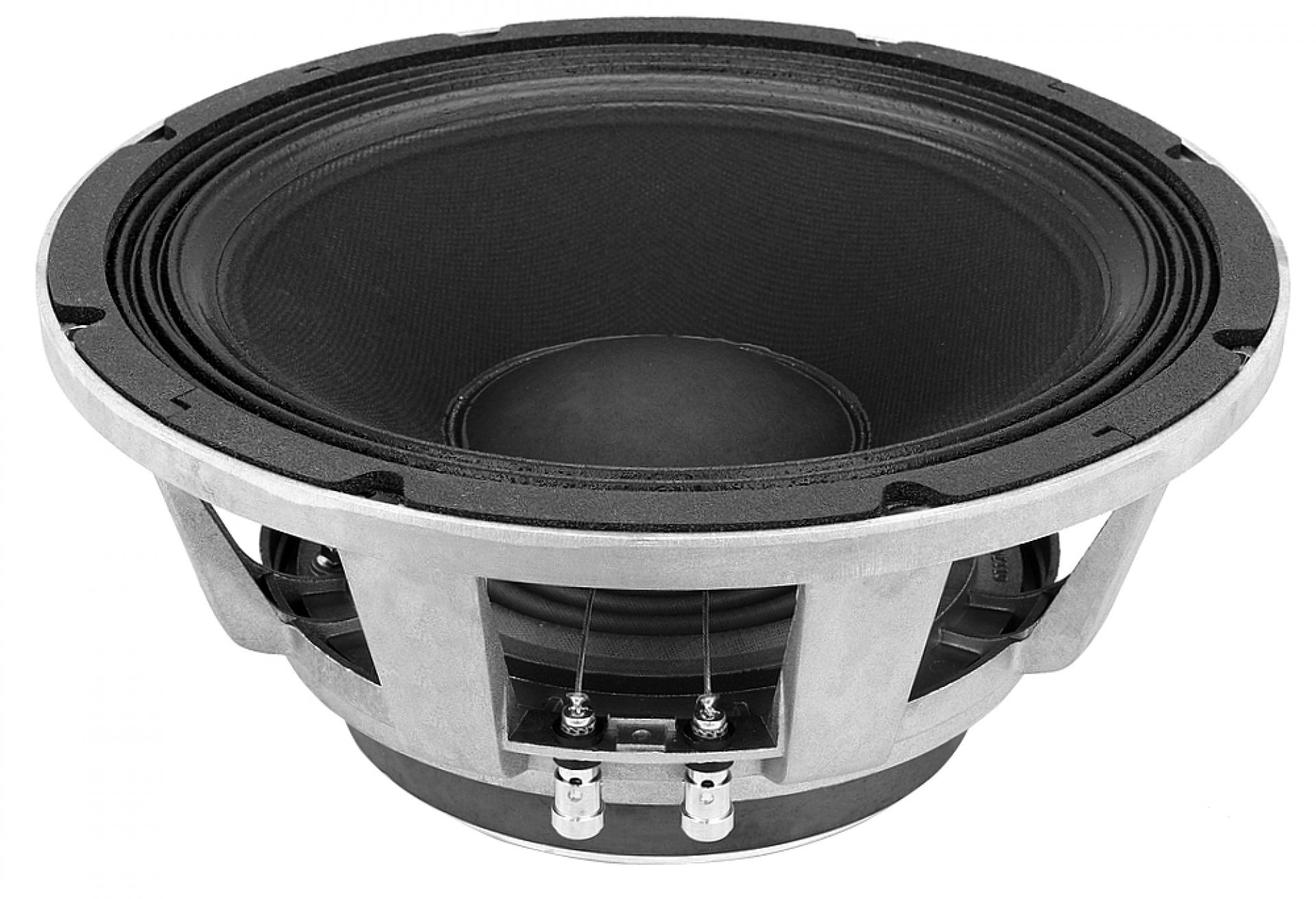

The 12L300 loudspeaker is combining high efficiency, wide range and high power handling capability with use of 64 mm aluminium voice coil. It features vented aluminium die cast frame, 169 mm magnet structure and curvilinear cone. 12L300 is suitable for application as LF driver in a compact 2 way PA boxes.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 12.5 inch
Front chape Cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 400 W
Max power handling 800 W
Sensitivity 100.5 dB

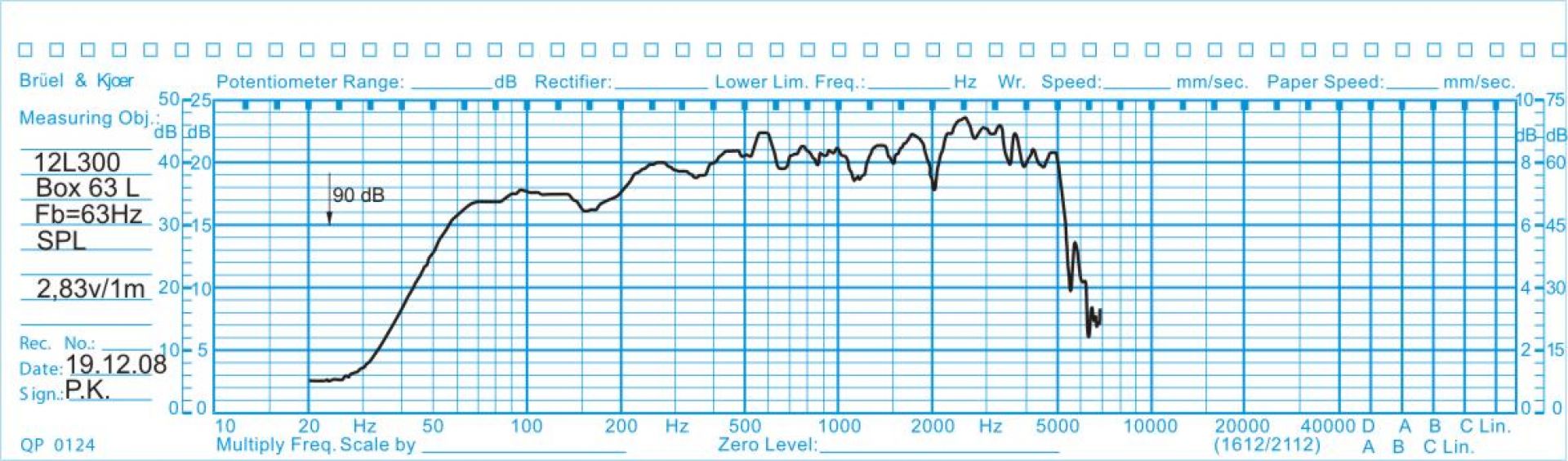

Frequency response 60-5000 Hz
Voice coil diameter 2.5 inch

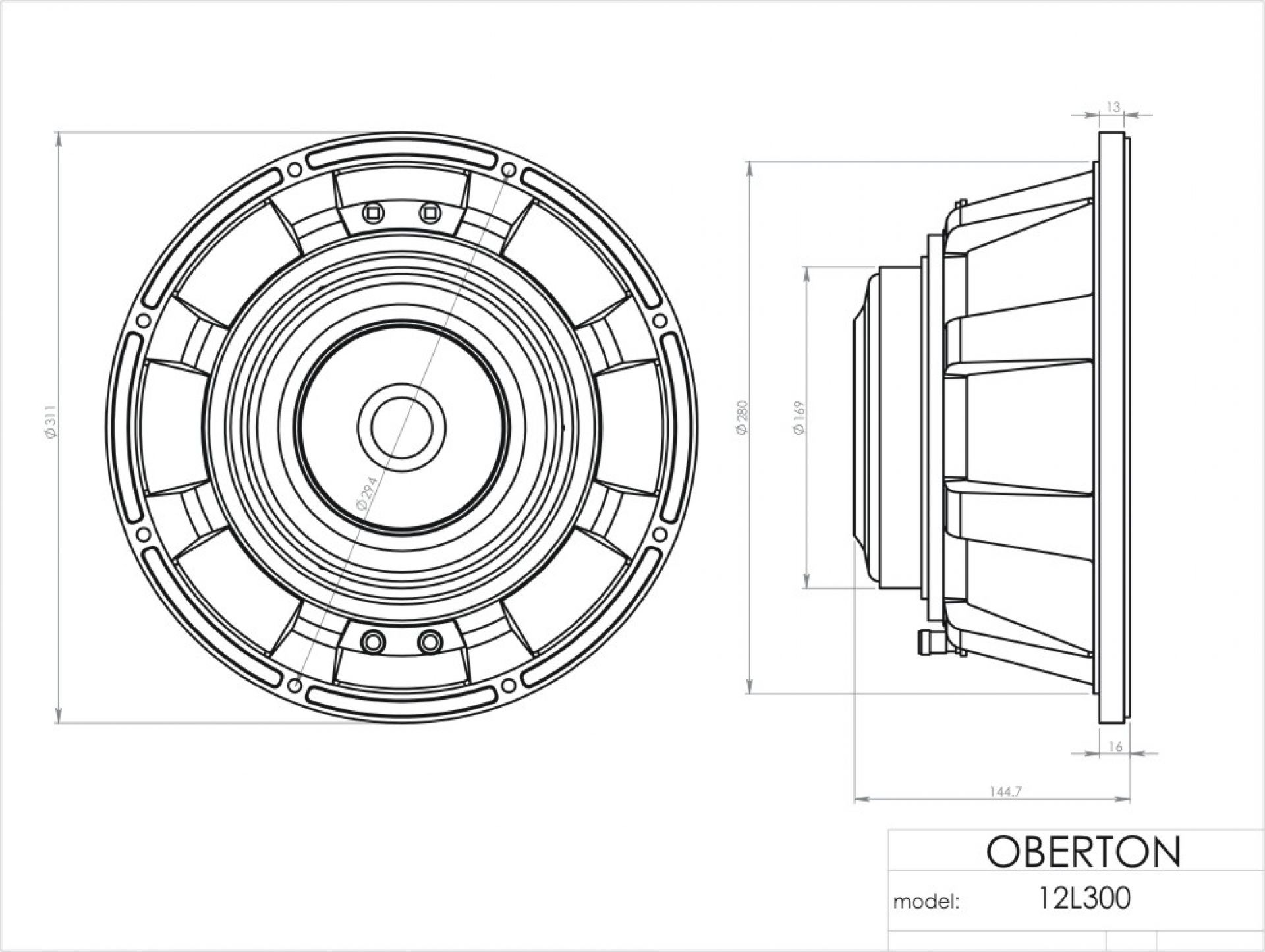

External diametre 311 mm
Mounting diametre 280 mm
Depth after front 128.7 mm
Front thickness 16 mm
Diamètre aimant (mm) 169 mm
Weight 6.8 kg
Fs 53.8 Hz
Re 5.35 ohm
Qes 0.261
Qms 9.98
Qts 0.254
Vas 79.63 L
Xmax 3.25 mm
Mms 40.65 gr
Le 0.69 mH
EBP 206
Shipping weight 7.4 kg
