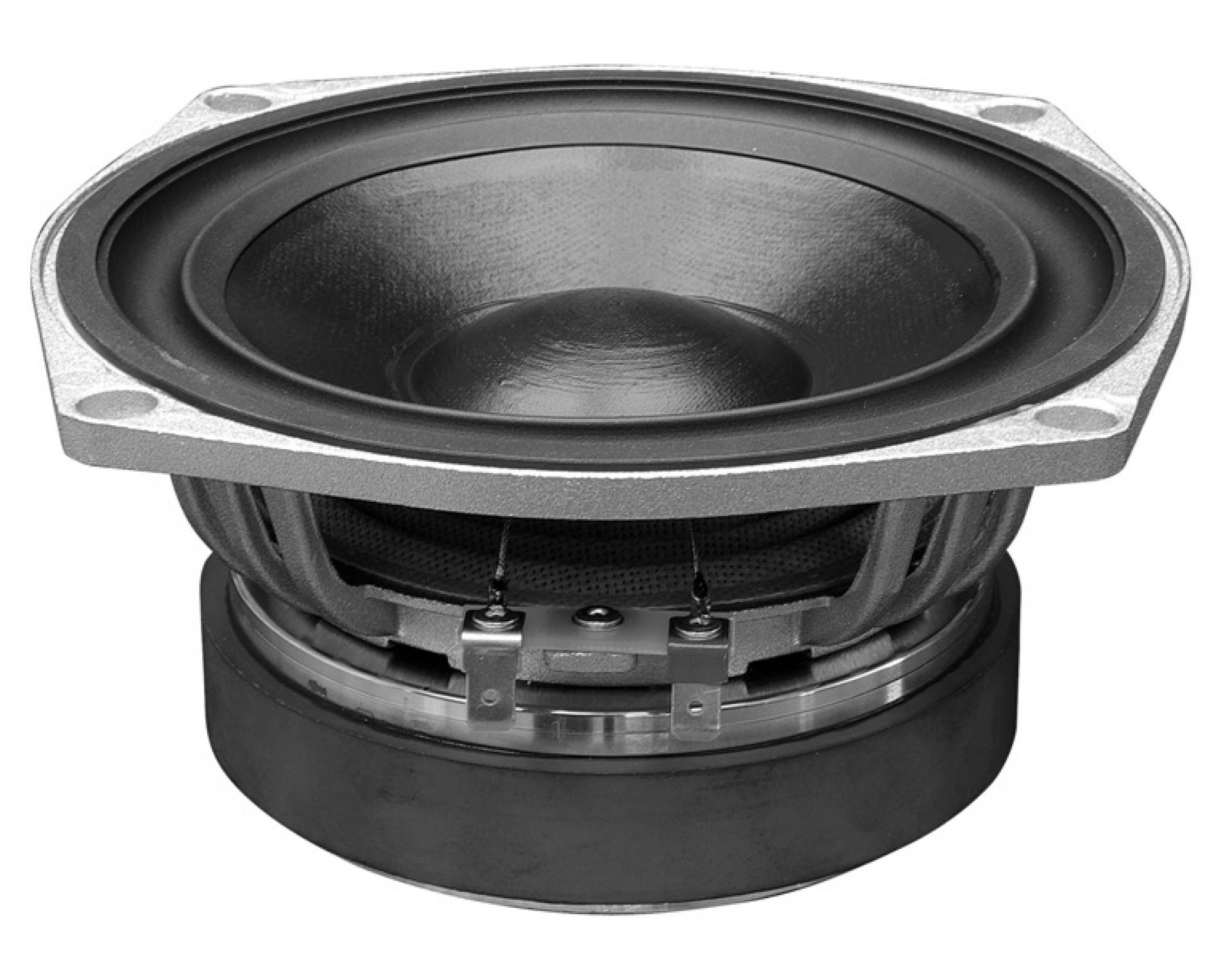

The 6B150 is high efficiency, high power bass loudspeaker , specially designed to use in compact bass reflex boxes. It features 38 mm cooper voice coil, vented aluminium die cast frame with powerful ferrite magnet structure, which achieved compact size of the speaker.
Shape Non cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 6.5 inch, 7.5 inch
Front chape Non cylindrical
Magnet type Neodymium
Nominal impedance 16 ohm
Nominal power handling 150 W
Max power handling 300 W
Sensitivity 92 dB

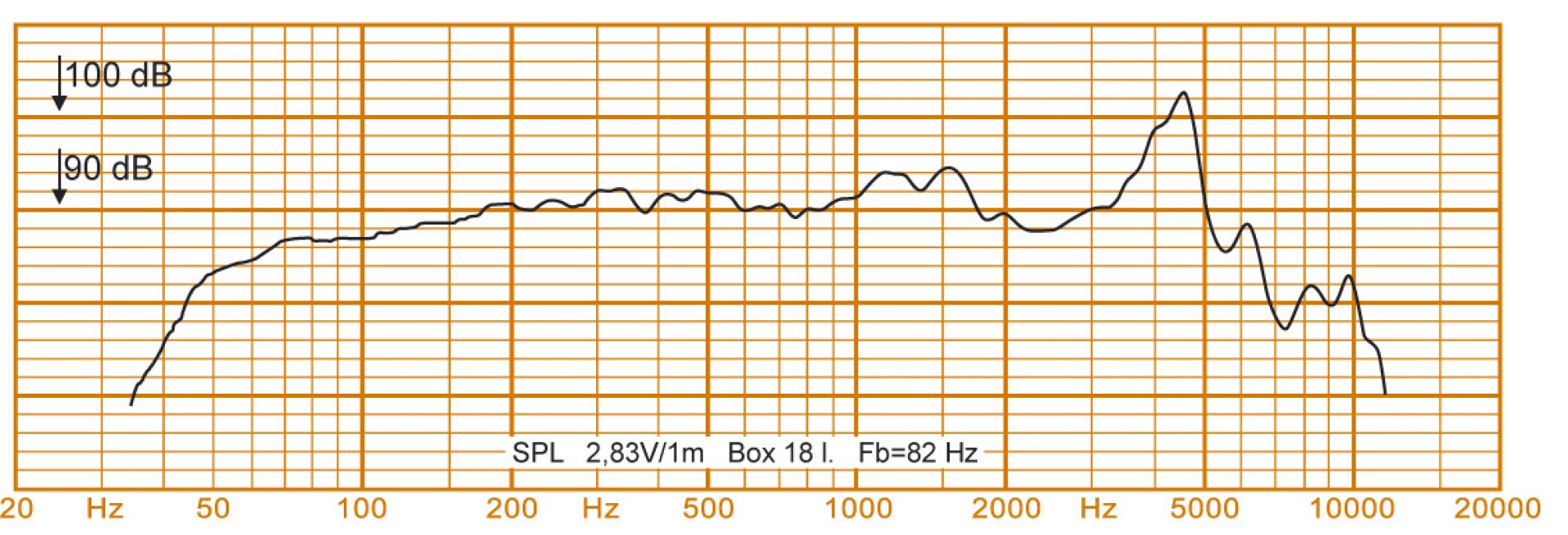

Frequency response 60-3000 Hz
Voice coil diameter 1.5 inch

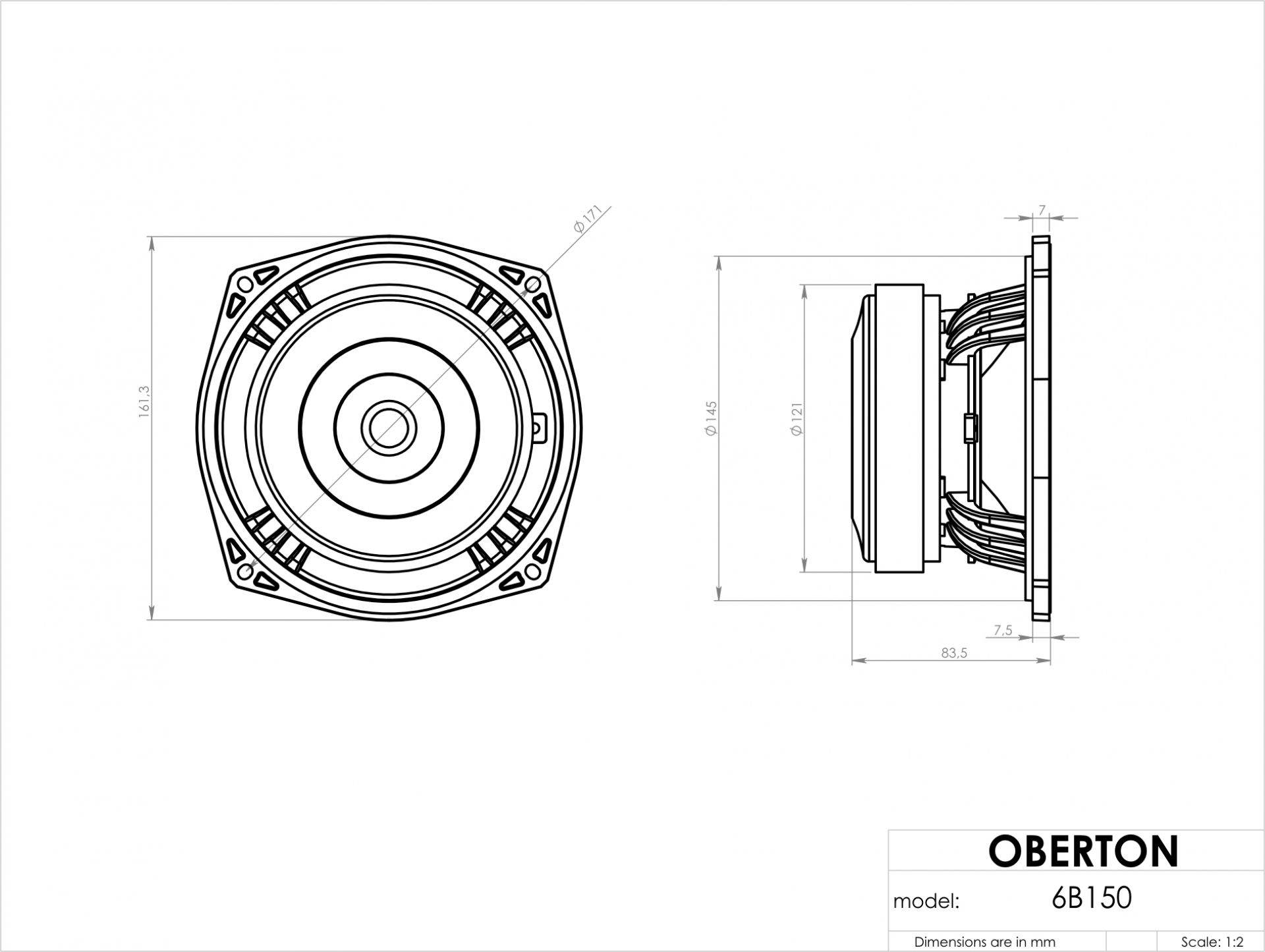

Total external dimensions 161.4 mm / 185 mm
Mounting diametre 145 mm
Depth after front 76 mm
Front thickness 8.5 mm
Diamètre aimant (mm) 121 mm
Weight 2.4 kg
Fs 55.04 Hz
Re 5.6 ohm
Qes 0.311
Qms 4.72
Qts 0.292
Vas 14.61 L
Xmax 5.5 mm
Mms 16.38 gr
Le 0.79 mH
EBP 177
Shipping weight 2.5 kg
