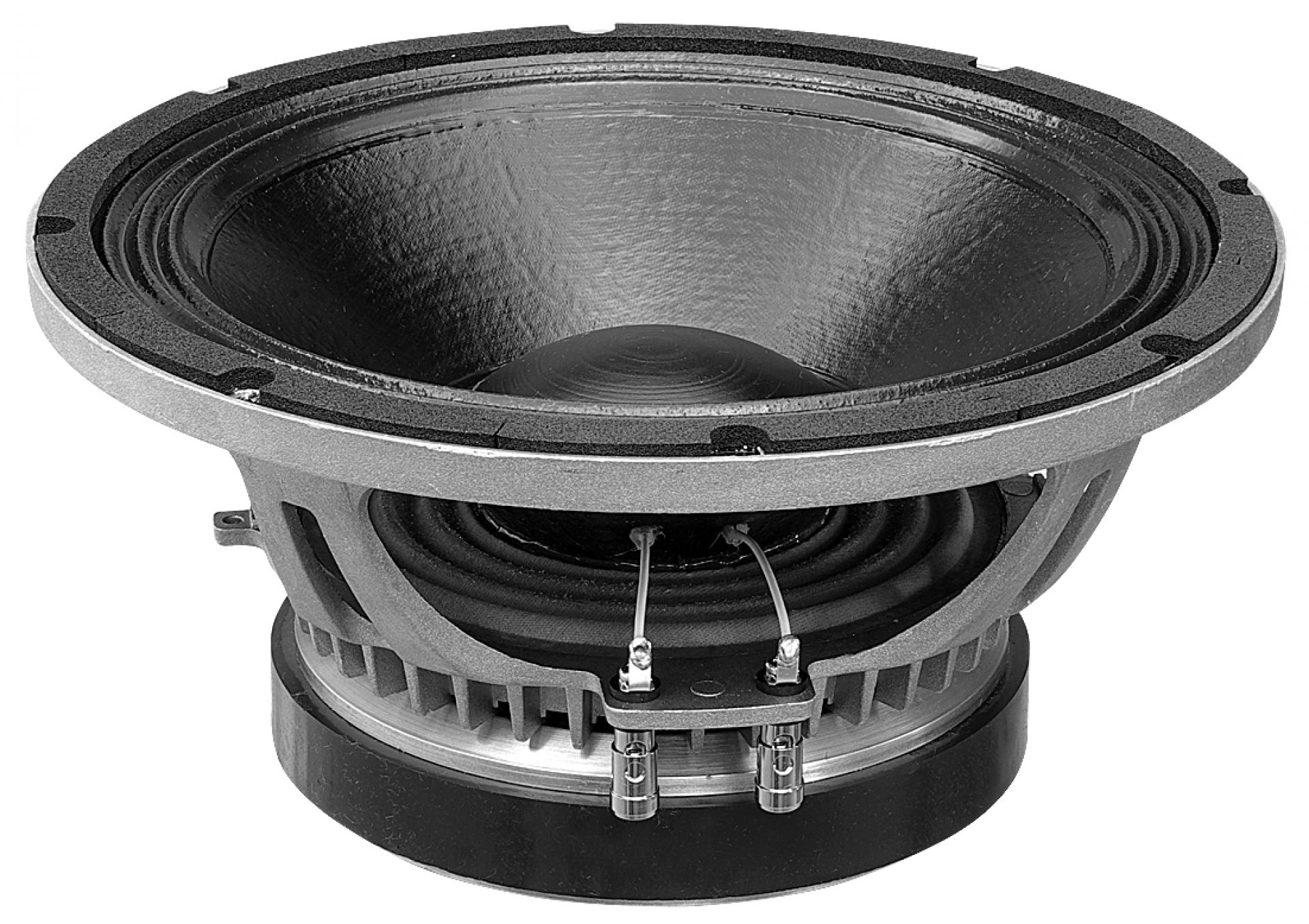

The 12MB35 loudspeaker is combining good linearity and efficiency with high power handling capabilities, with use of new 3.5” (88 mm) aluminium voice coil. It features vented aluminium die cast frame, 200 mm ferrite magnet structure with double demodulating rings and curvilinear paper cone. 12MB35 is suitable for application as LF driver in power stage monitors and 2- way PA boxes.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 12.5 inch
Front chape Cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 700 W
Max power handling 1400 W
Sensitivity 98 dB

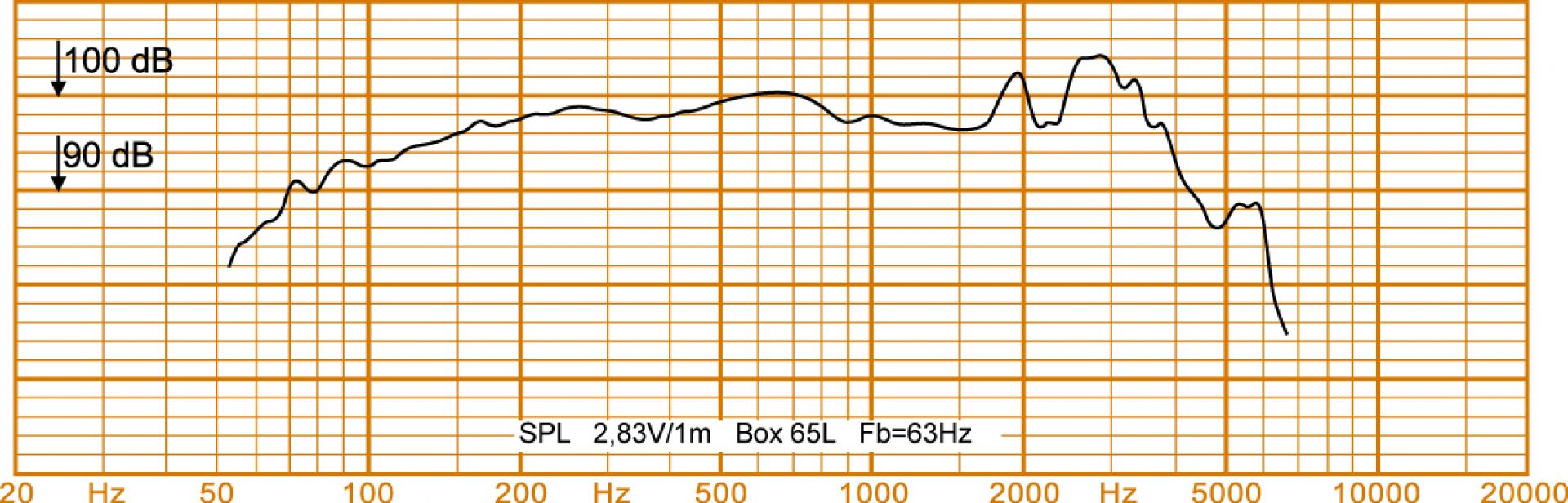

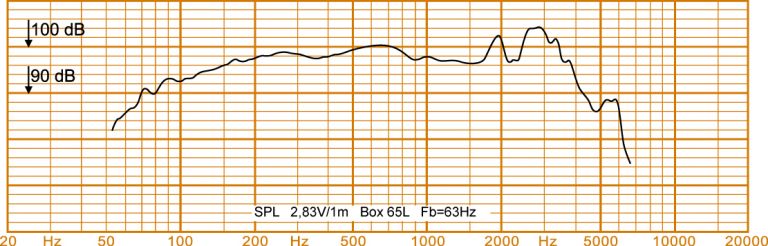

Frequency response 50-2500 Hz
Voice coil diameter 3 inch

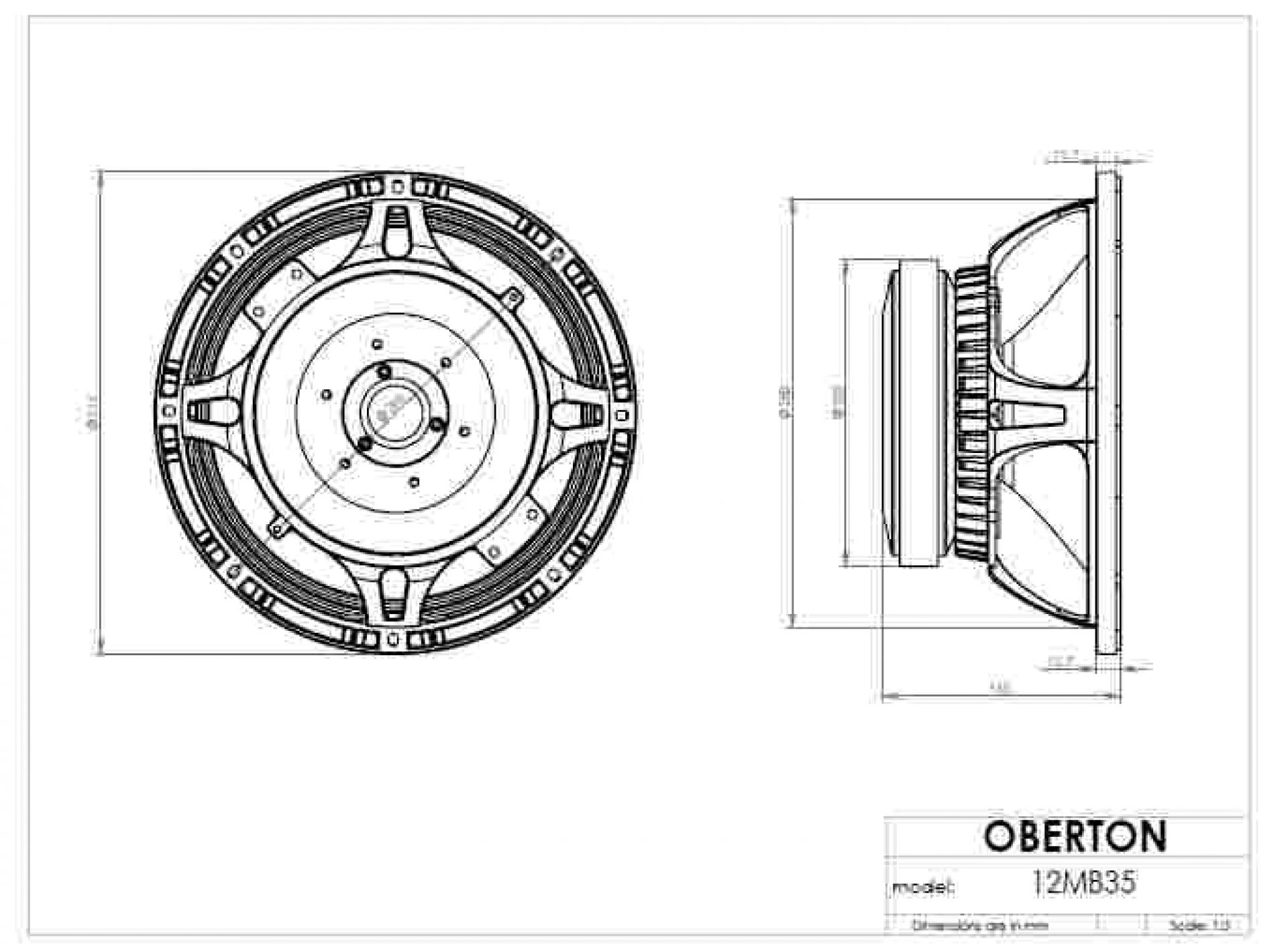

External diametre 315 mm
Mounting diametre 280 mm
Depth after front 139.3 mm
Front thickness 15.7 mm
Diamètre aimant (mm) 200 mm
Weight 8.5 kg
Fs 51.43 Hz
Re 0.68 ohm
Qes 0.272
Qms 13.58
Qts 0.267
Vas 50.07 L
Xmax 6.75 mm
Mms 70.76 gr
Le 0.68 mH
EBP 189
Shipping weight 8.5 kg
