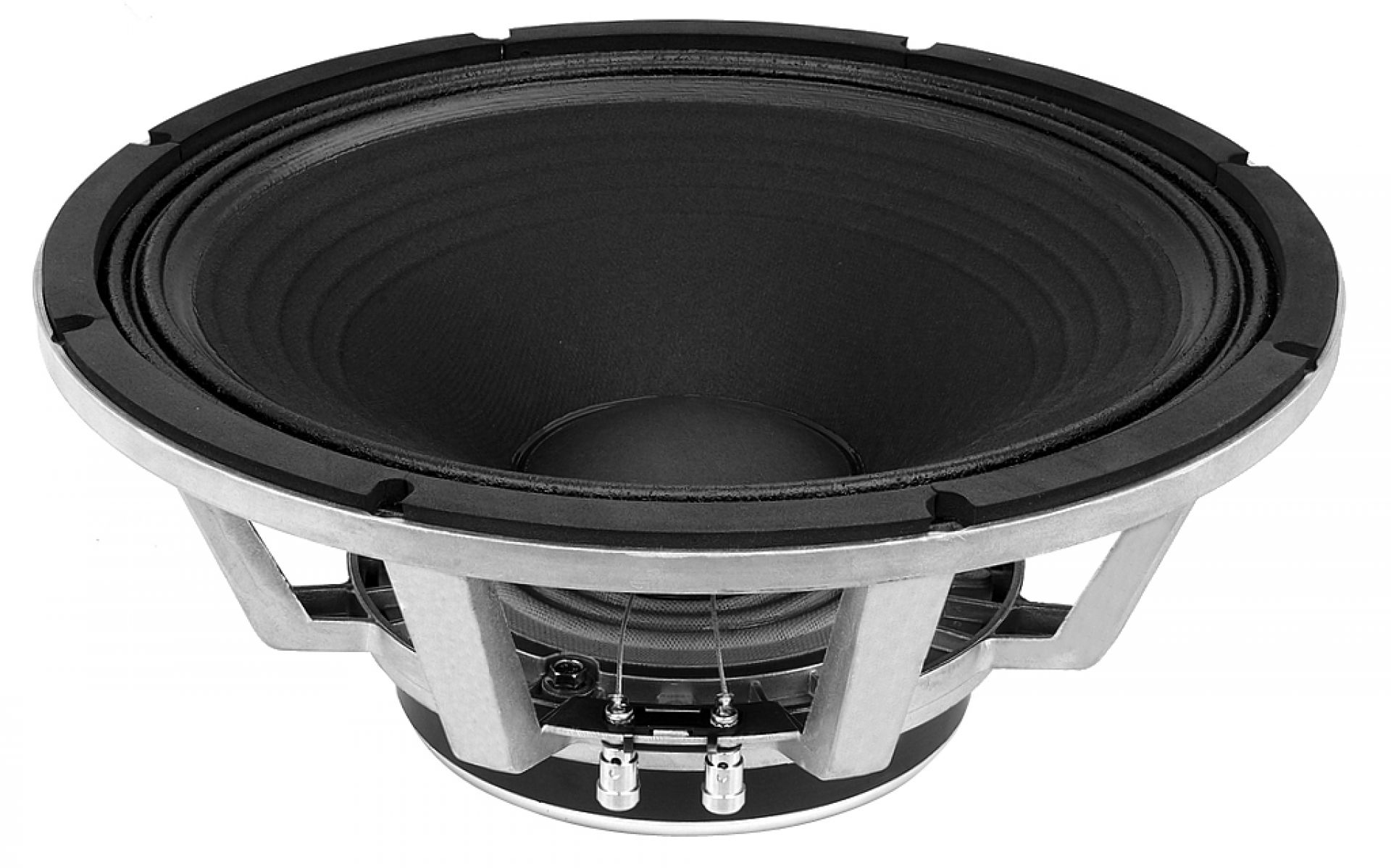

The 15XL400 speaker combining very good linearity and efficiency with high power handling capabilities, with use of 77 mm aluminium voice coil. It features aluminium die cast frame, 180 mm magnet structure. 15XL400 is suitable for application as the LF driver in compact 15” 2-way boxes.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 15.5 inch
Front chape Cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 400 W
Max power handling 800 W
Sensitivity 102 dB

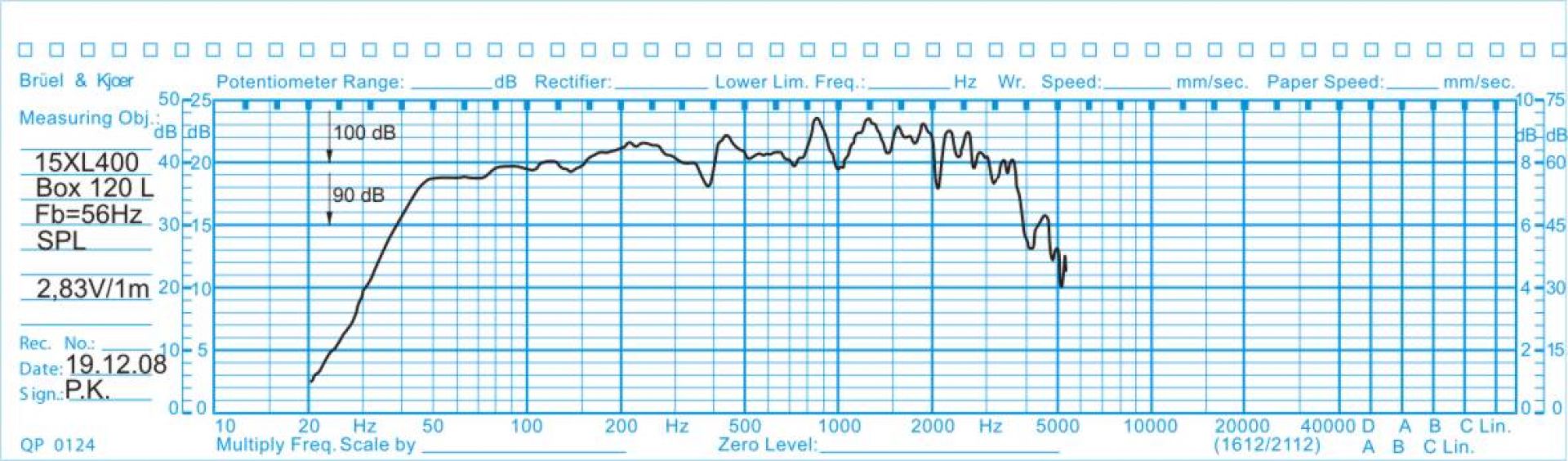

Frequency response 50-3500 Hz
Voice coil diameter 3 inch

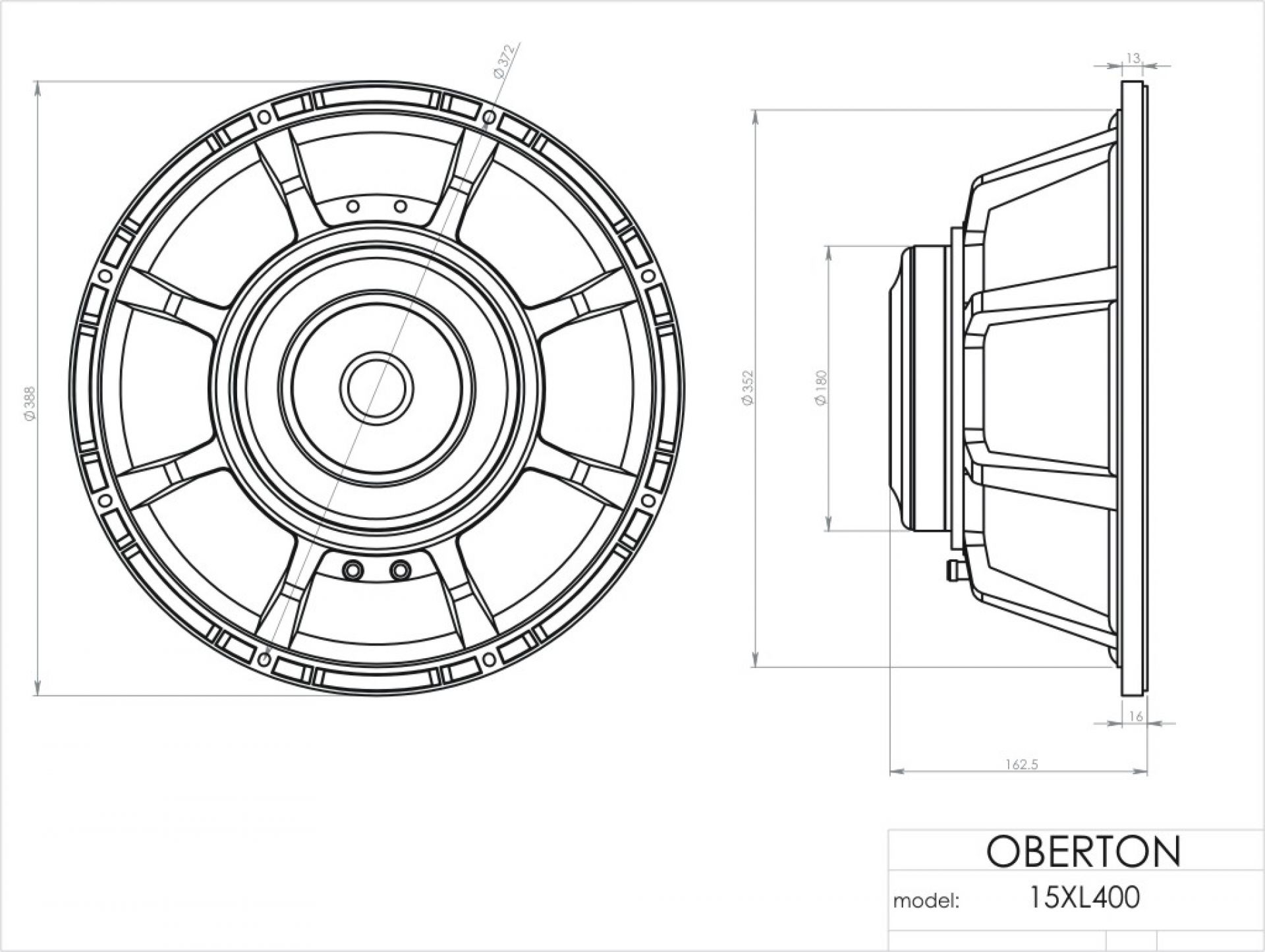

External diametre 388 mm
Mounting diametre 354 mm
Depth after front 146.5 mm
Front thickness 16 mm
Diamètre aimant (mm) 180 mm
Weight 7.5 kg
Fs 48.78 Hz
Re 5.6 ohm
Qes 0.35
Qms 9.3
Qts 0.337
Vas 140 L
Xmax 5.25 mm
Mms 73.05 gr
Le 0.76 mH
EBP 139
Shipping weight 8.29 kg
