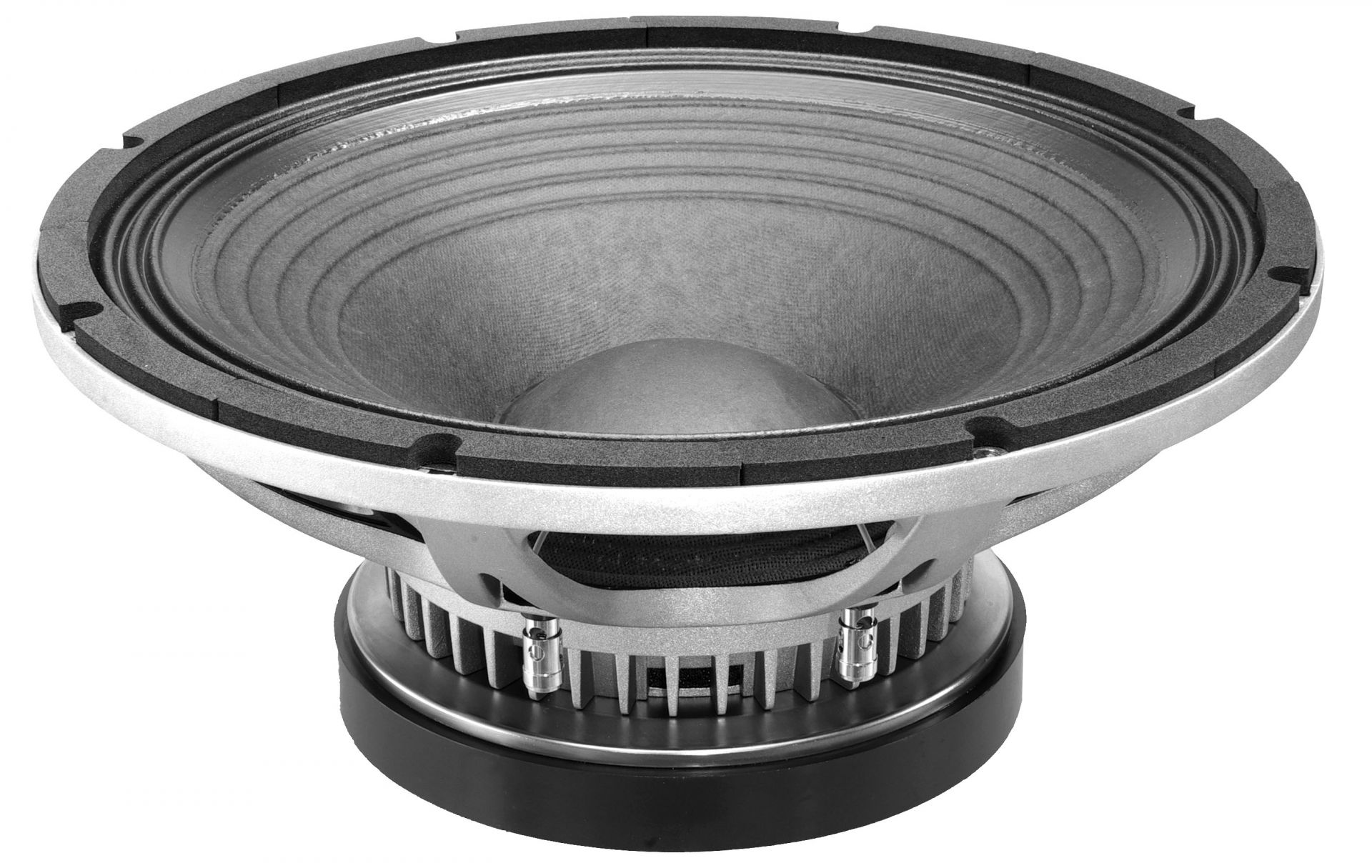

15XL700 loudspeaker combining good linearity and efficiency with high power handling capabilities, with use of 100 mm aluminium voice coil and double silicone spider. It features aluminium die cast frame, vented ferrite magnet structure with two demodulating rings. The low Mms ensures fast and precise midbass reproduction. 15XL700 is suitable for application in a wide variety of enclosure types and particularly as LF driver in 2- or 3- way boxes.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 15.5 inch
Front chape Cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 700 W
Max power handling 1400 W
Sensitivity 98 dB

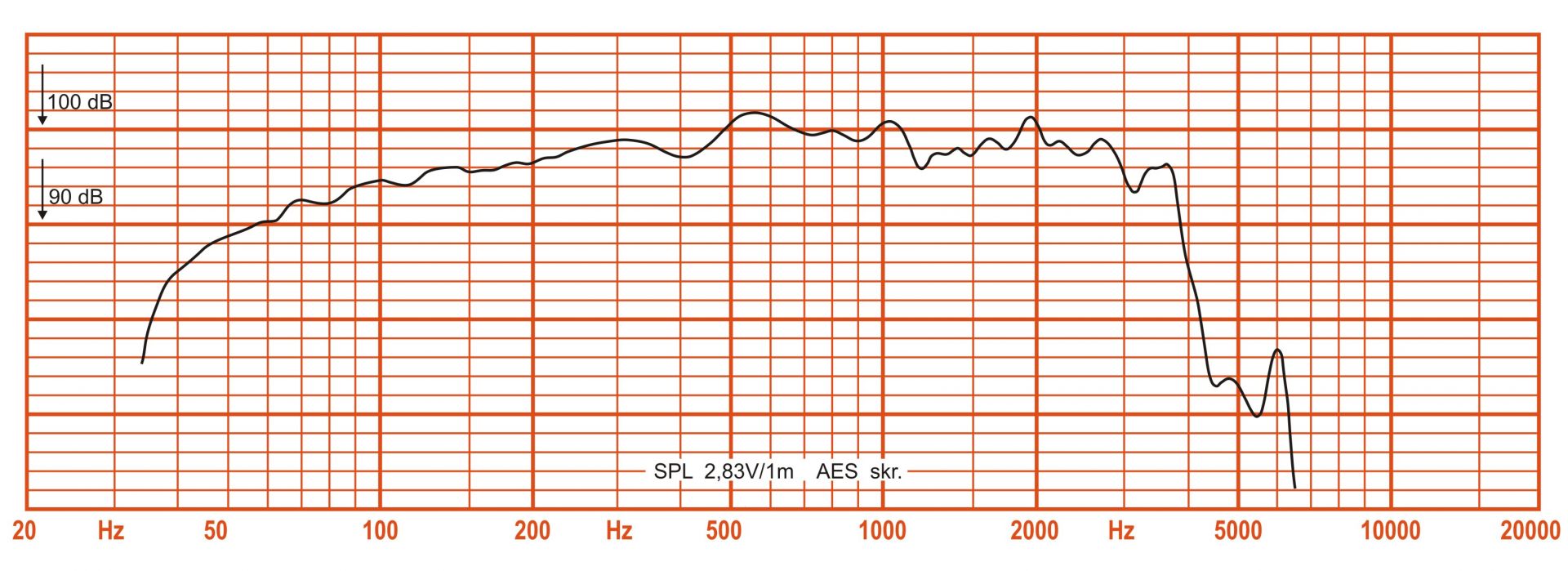

Frequency response 45-3000 Hz
Voice coil diameter 4 inch

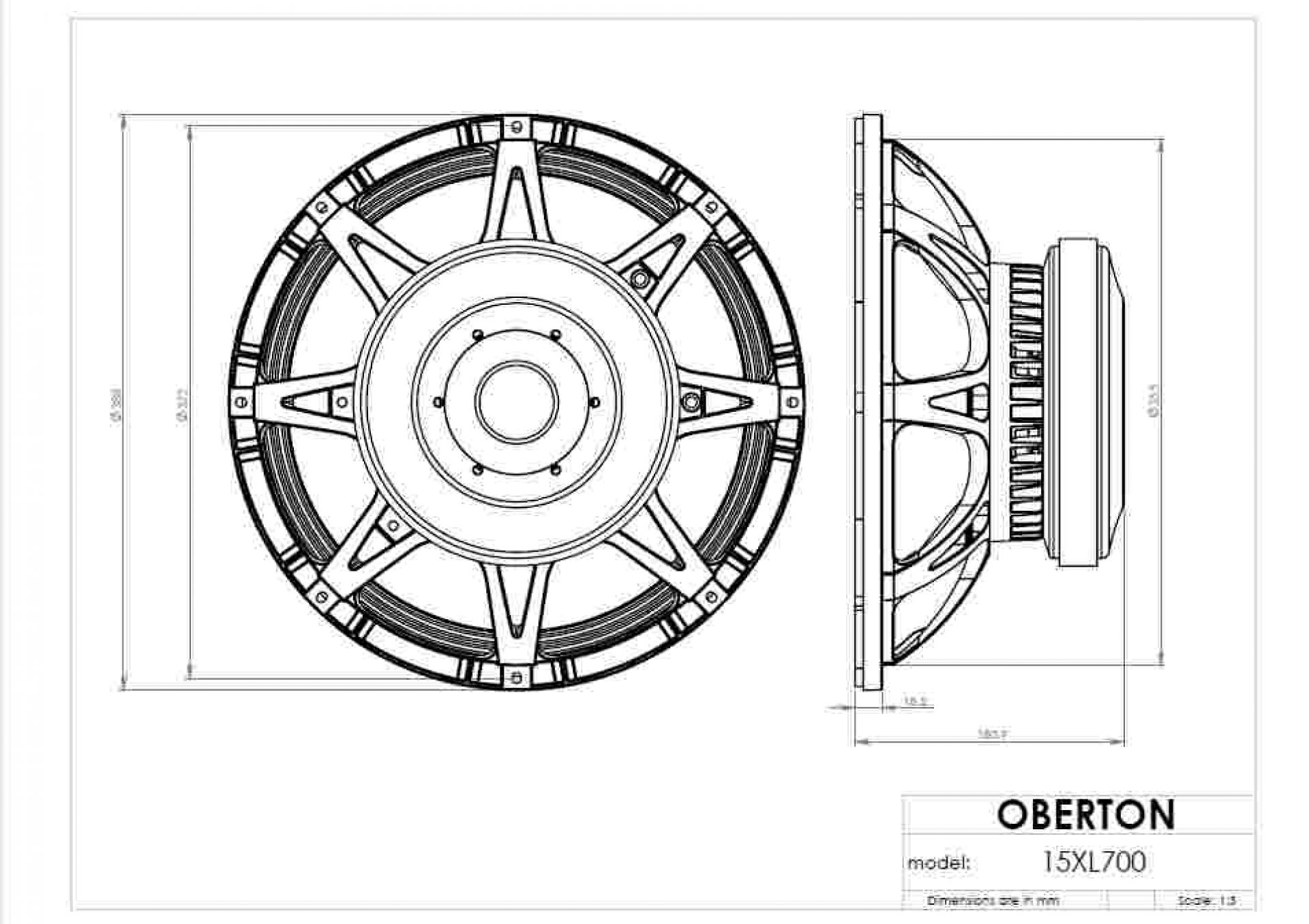

External diametre 388 mm
Mounting diametre 354 mm
Depth after front 162.7 mm
Front thickness 15.7 mm
Diamètre aimant (mm) 220 mm
Weight 11.95 kg
Fs 45.25 Hz
Re 5.3 ohm
Qes 0.288
Qms 10.07
Qts 0.28
Vas 116.99 L
Xmax 8.75 mm
Mms 101.64 gr
Le 1.05 mH
EBP 157
Shipping weight 12.55 kg
