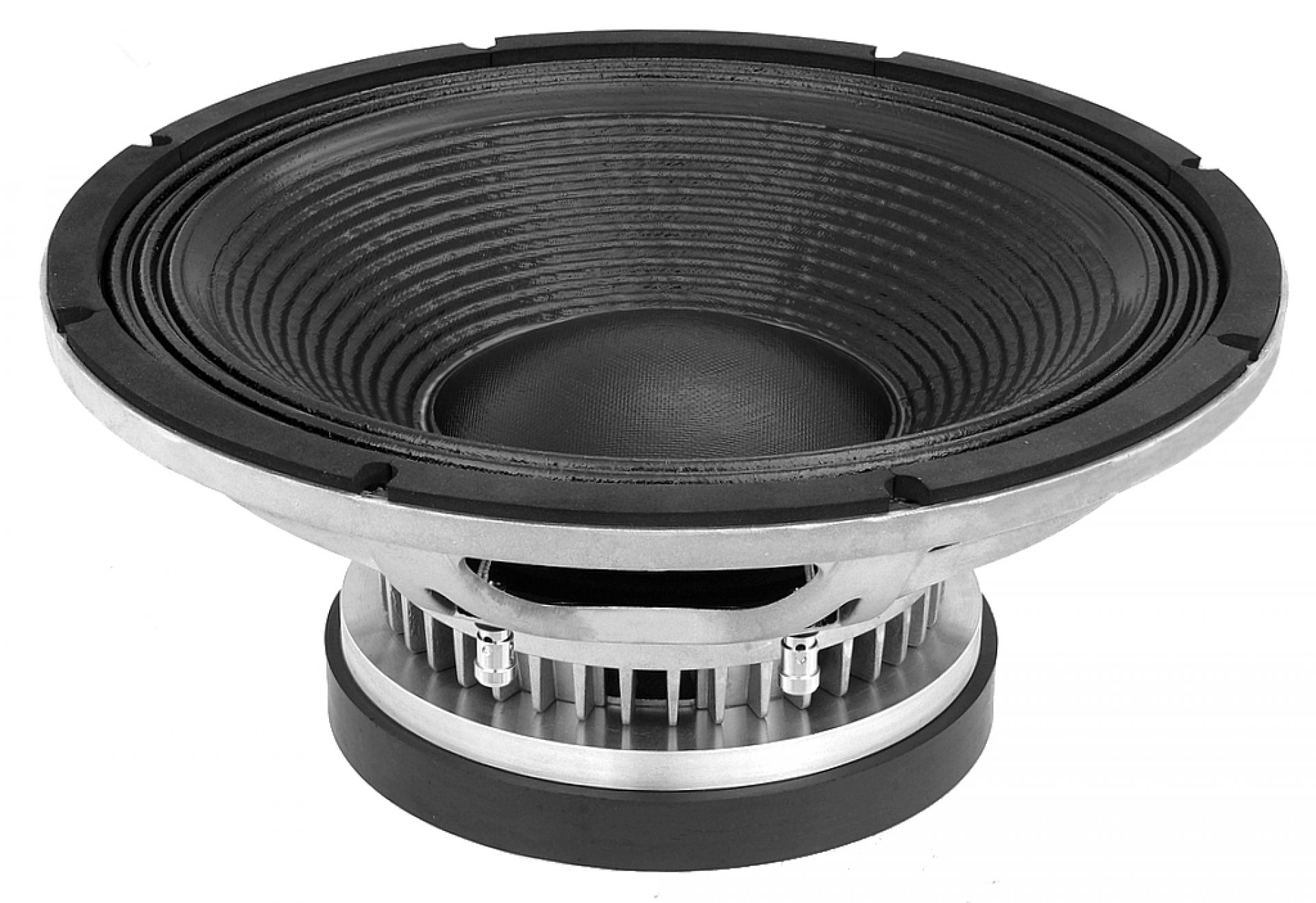

15 XB 700 is a high power long coil 15 inch bass loudspeaker design to reinforce low frequency range at very high sound power levels. It features a 4” sandwich voice coil, vented aluminium frame with integhrated demodulating ring, 220 mm magnet structure and double spider assembly. It is suitable for tuned reflex or horn loaded enclosures for high level subwoofer applications.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 15.5 inch
Front chape Cylindrical
Magnet type Ferrite
Nominal impedance 8 ohm
Nominal power handling 1000 W
Max power handling 2000 W
Sensitivity 95 dB

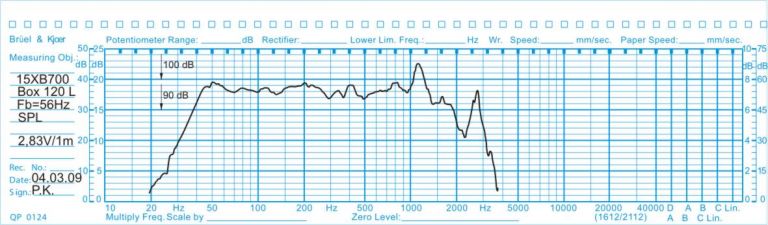

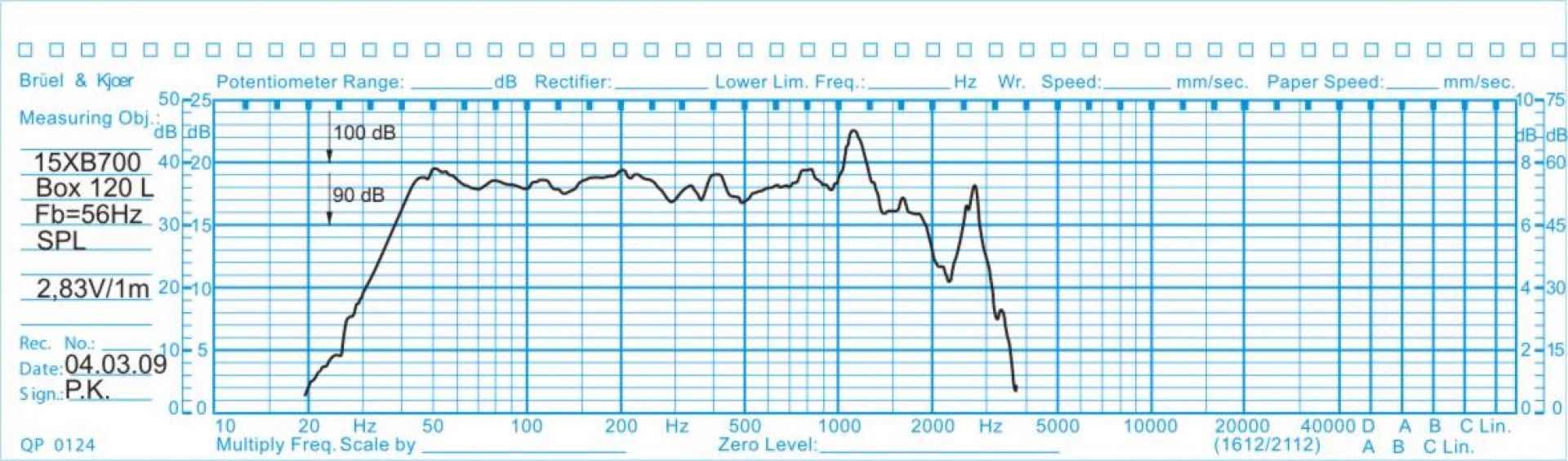

Frequency response 37-2000 Hz
Voice coil diameter 4 inch

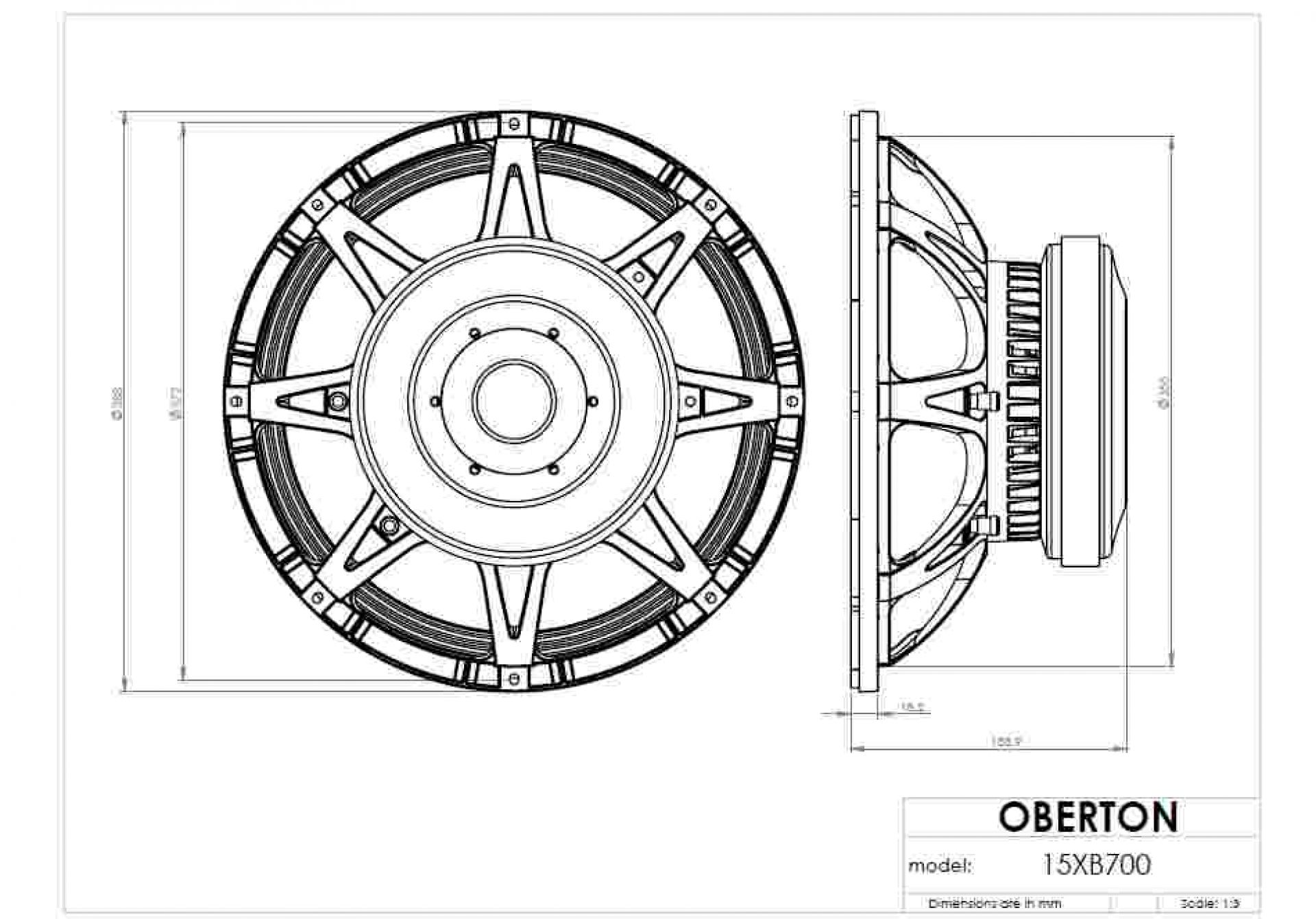

External diametre 388 mm
Mounting diametre 354 mm
Depth after front 163.7 mm
Front thickness 15.7 mm
Diamètre aimant (mm) 218 mm
Weight 11.95 kg
Fs 37.2 Hz
Re 5.19 ohm
Qes 0.292
Qms 9.2
Qts 0.283
Vas 111.02 L
Xmax 9 mm
Mms 158.39 gr
Le 1.9 mH
EBP 127
Shipping weight 13.4 kg
