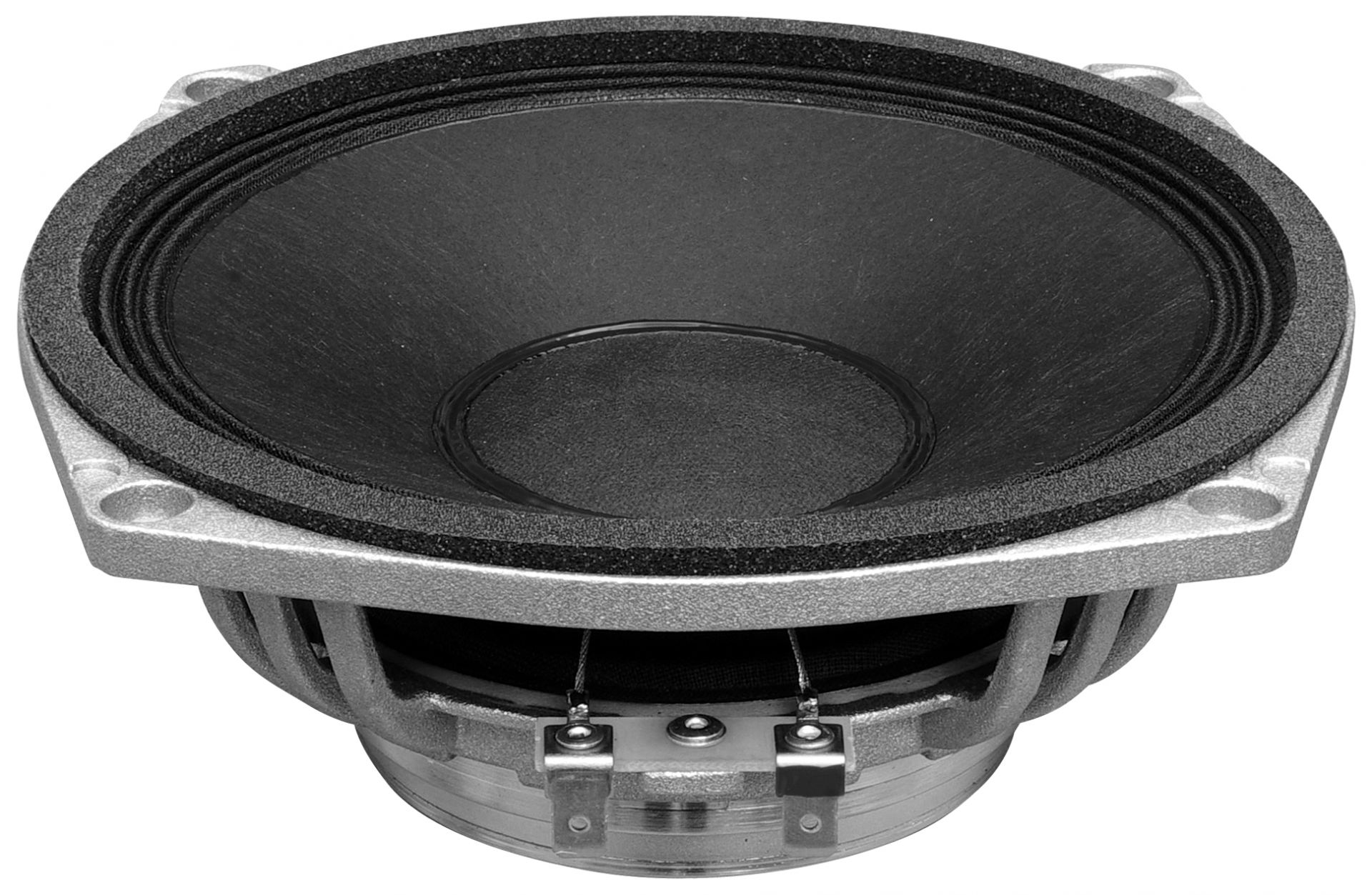

The 6NM150 is high efficiency, high power midrange neodymium loudspeaker , specially designed to use in 3 way boxes and line array systems. It features 44 mm aluminium voice coil, vented aluminium die cast frame with powerful neodymium magnet structure, which achieved very light weight of the speaker.
Shape Non cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 6.5 inch, 7.5 inch
Front chape Non cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 150 W
Max power handling 300 W
Sensitivity 97 dB

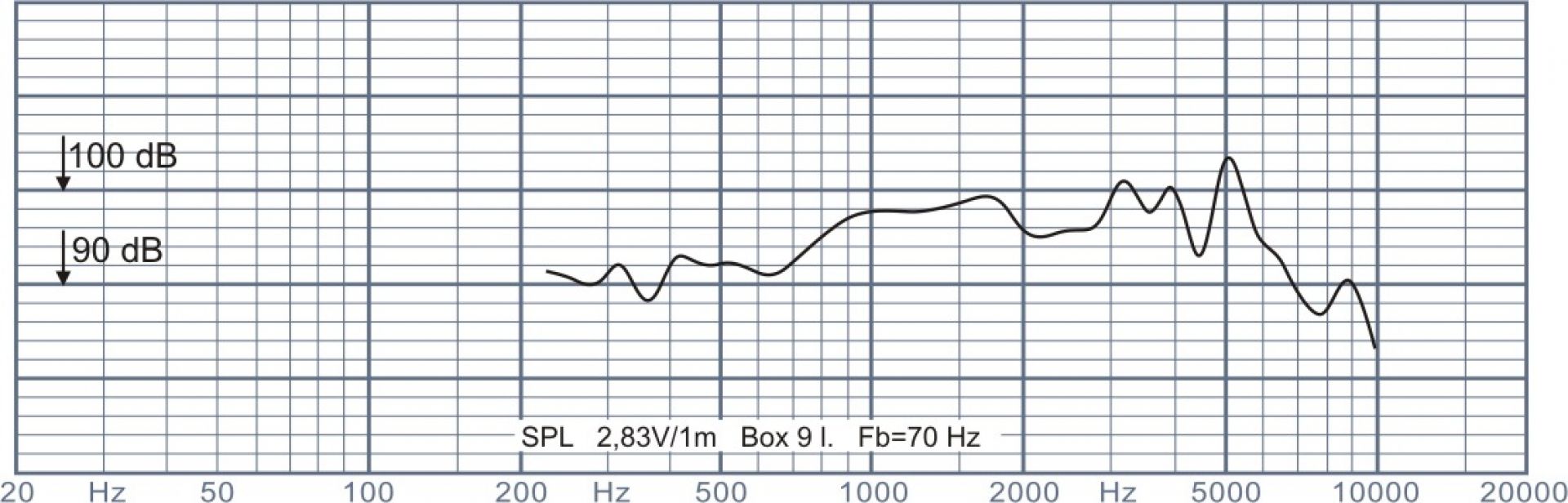

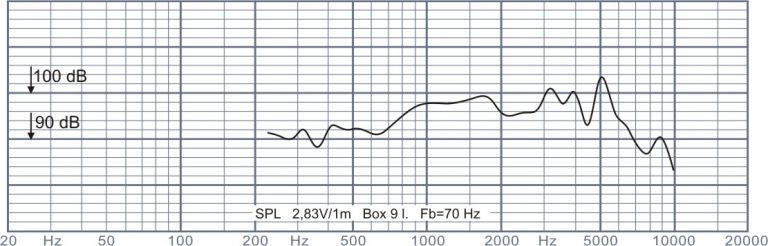

Frequency response 200-5000 Hz
Voice coil diameter 1.73 inch

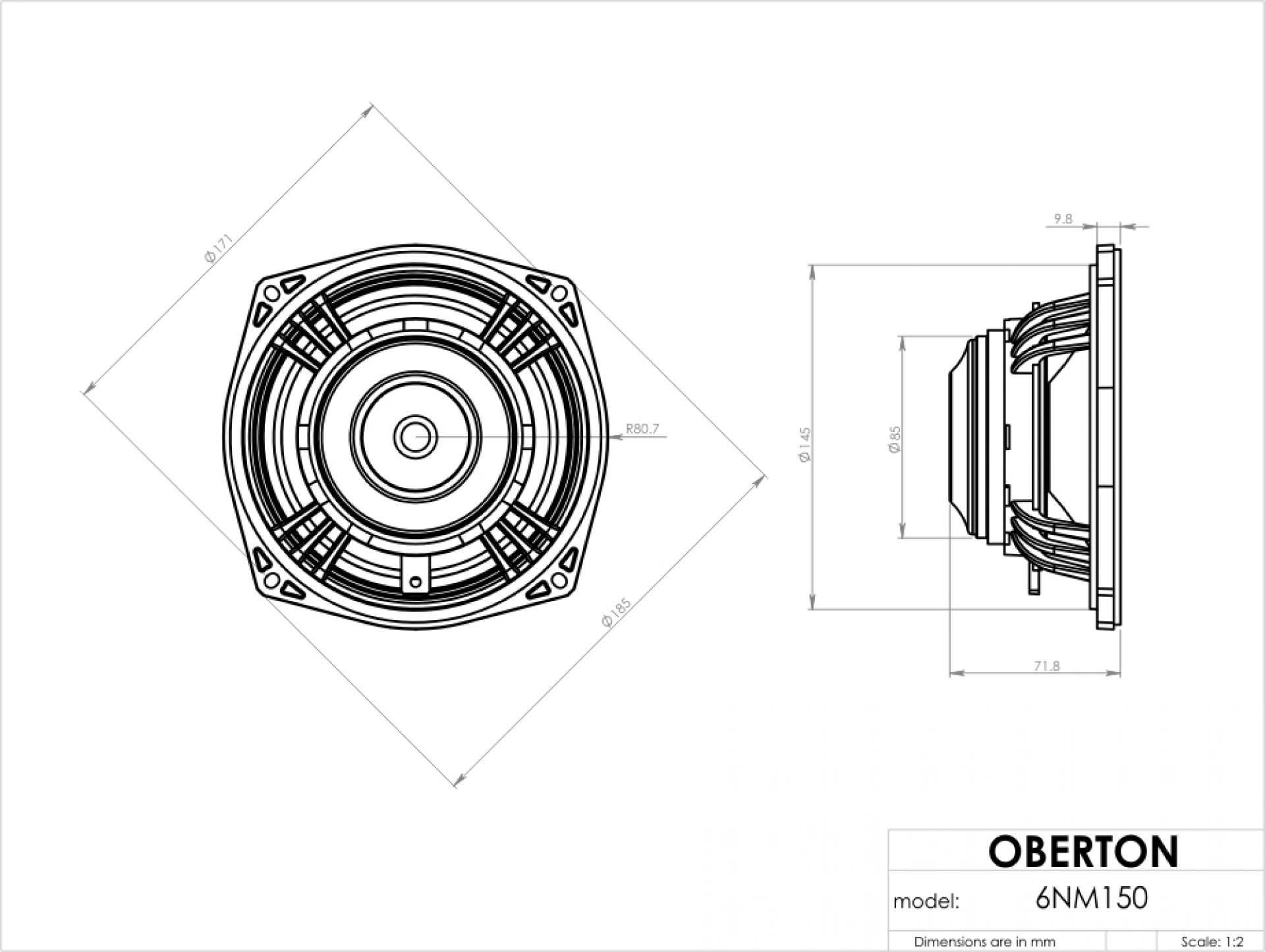

Total external dimensions 161.4 mm / 185 mm
Mounting diametre 145 mm
Depth after front 62 mm
Front thickness 9.8 mm
Diamètre aimant (mm) 85 mm
Weight 1.05 kg
Fs 124 Hz
Re 6.25 ohm
Qes 0.403
Qms 5.96
Qts 0.377
Vas 4 L
Xmax 2.25 mm
Mms 11.08 gr
Le 0.3 mH
EBP 308
Shipping weight 1.05 kg
