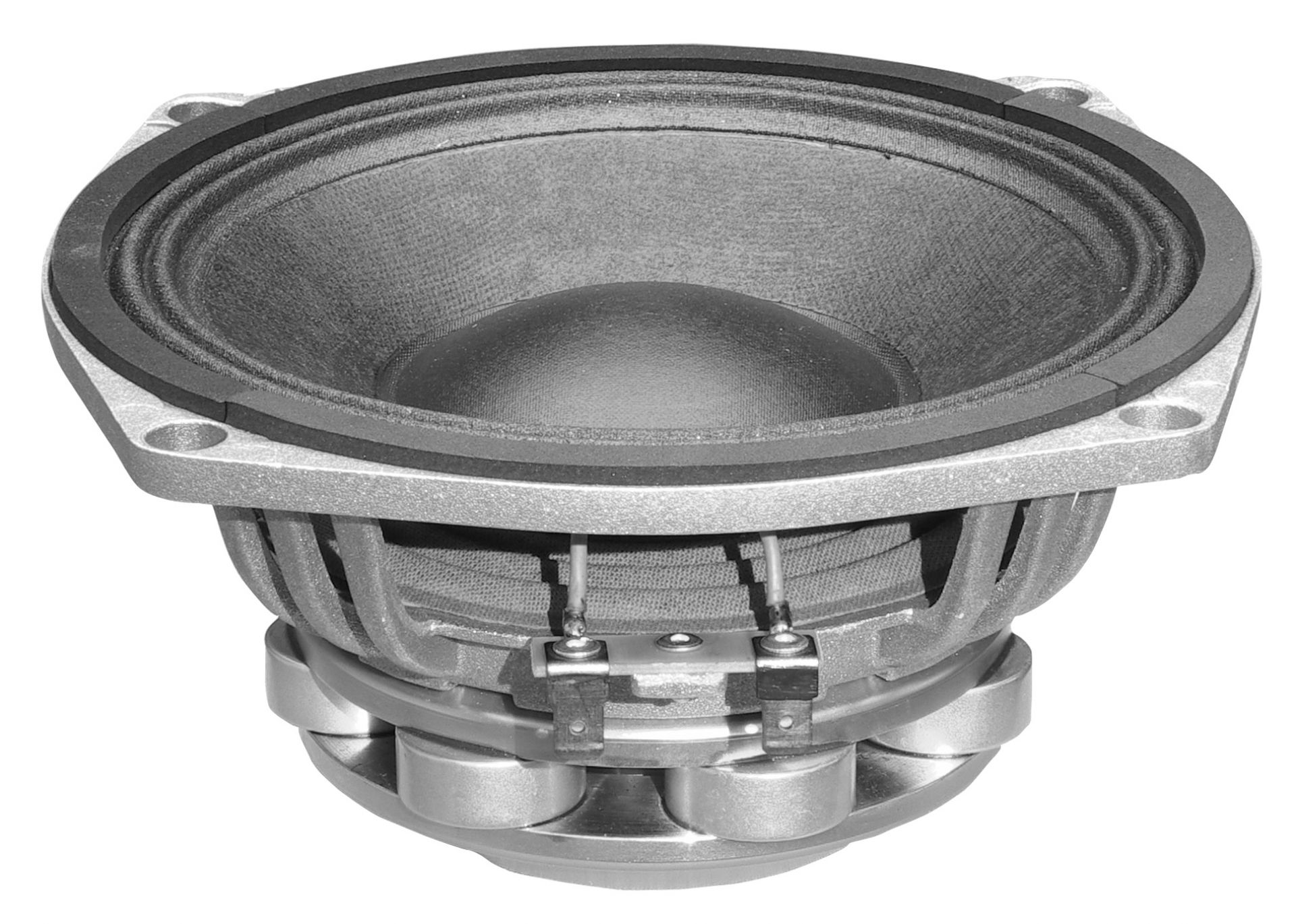

The 6NMB200V is high efficiency, high power midbass neodymium loudspeaker , specially designed to use in compact 2 way boxes and line array systems. It features 51 mm aluminium voice coil, vented aluminium die cast frame with powerful neodymium magnet structure, which achieved very light weight of the speaker. Using of double aluminium demodulating rings on the magnet structure reduce dramatically distortion and inductance and improve transient response.
Shape Non cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 6.5 inch, 7.5 inch
Front chape Non cylindrical
Magnet type Neodymium
Nominal impedance 16 ohm
Nominal power handling 200 W
Max power handling 400 W
Sensitivity 96 dB

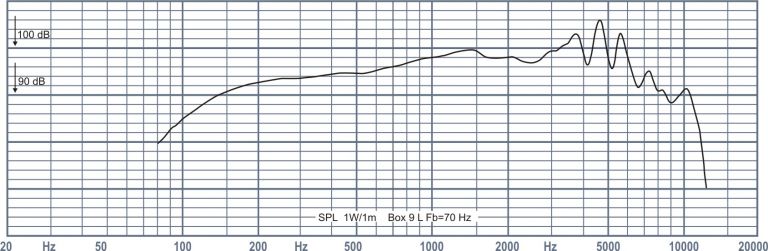

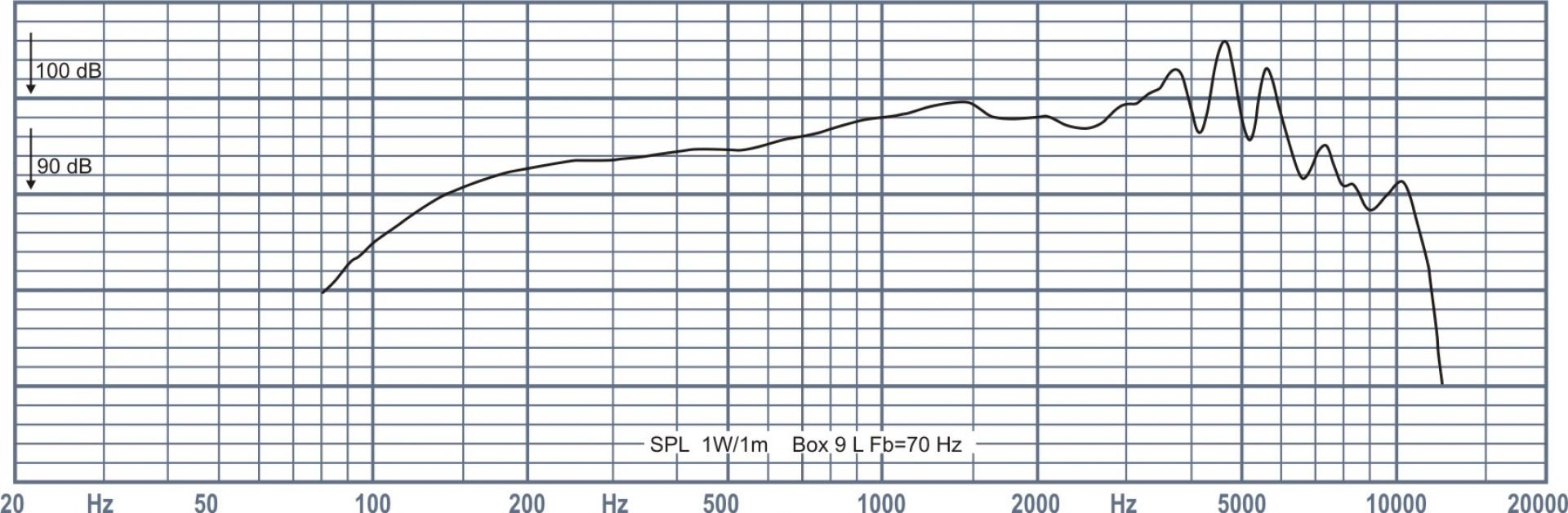

Frequency response 200-5000 Hz
Voice coil diameter 2 inch

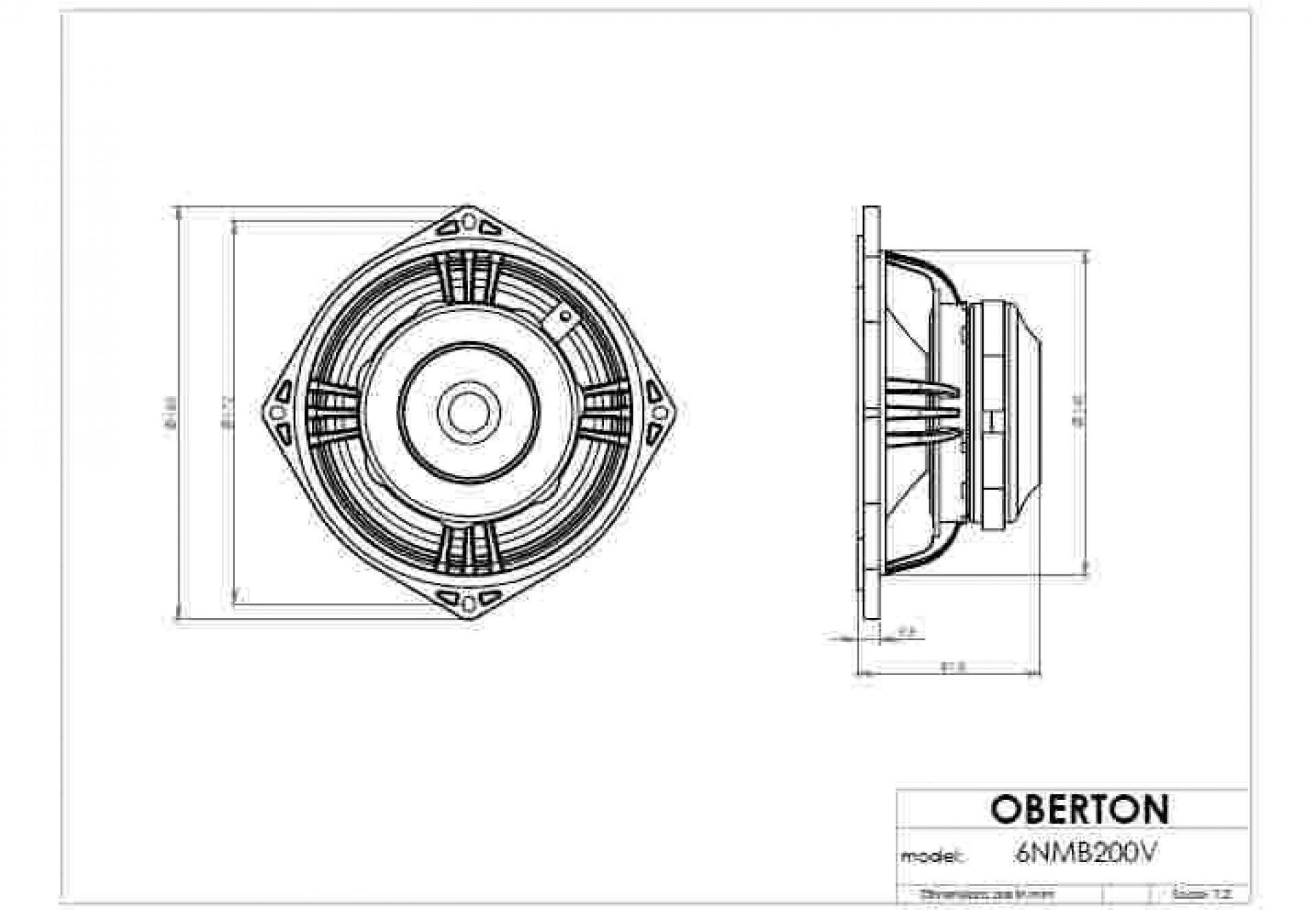

Total external dimensions 162 mm / 185 mm
Mounting diametre 145 mm
Depth after front 72 mm
Front thickness 10.5 mm
Diamètre aimant (mm) 98 mm
Weight 1.64 kg
Fs 91.49 Hz
Re 10.6 ohm
Qes 0.243
Qms 10.18
Qts 0.238
Vas 4.94 L
Xmax 4.5 mm
Mms 14.15 gr
Le 0.18 mH
EBP 377
Shipping weight 1.55 kg
