KEY FEATURES:
101 db 1W / 1m average sensitivity
51 mm high temperature voice coil
400 W AES program power
Application : Power midrange speaker

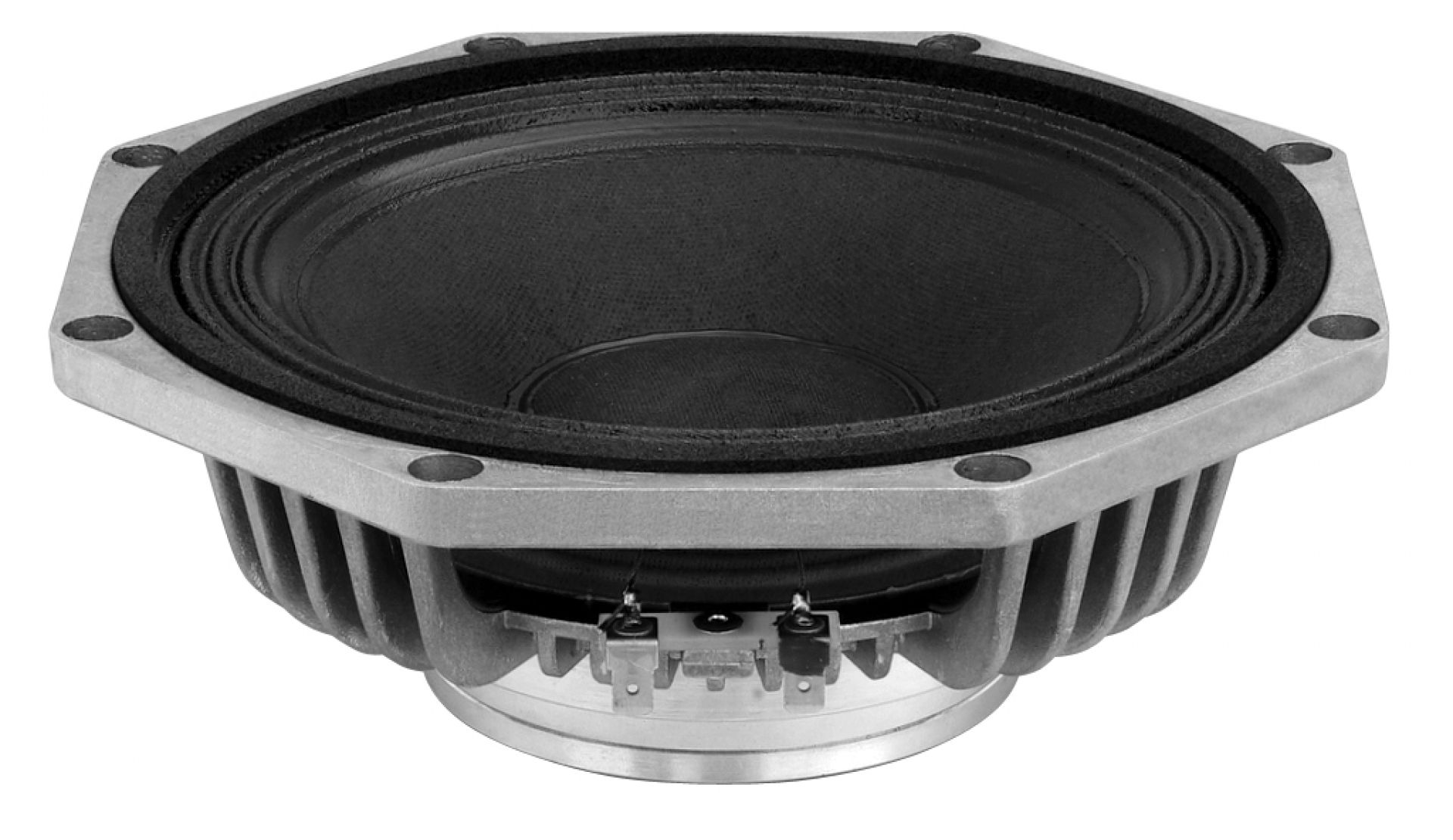

The 8NM200 is high efficiency, high power midrande neodymium loudspeaker , specially designed to provide superior sound pressure level. It features 51 mm aluminium voice coil, aluminium die cast frame with powerful neodymium magnet structure. It is suitable for application as high power midrange in direct radiating and horn loaded boxes.
Shape Non cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 8.5 inch, 9 inch
Front chape Non cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 200 W
Max power handling 400 W
Sensitivity 101 dB

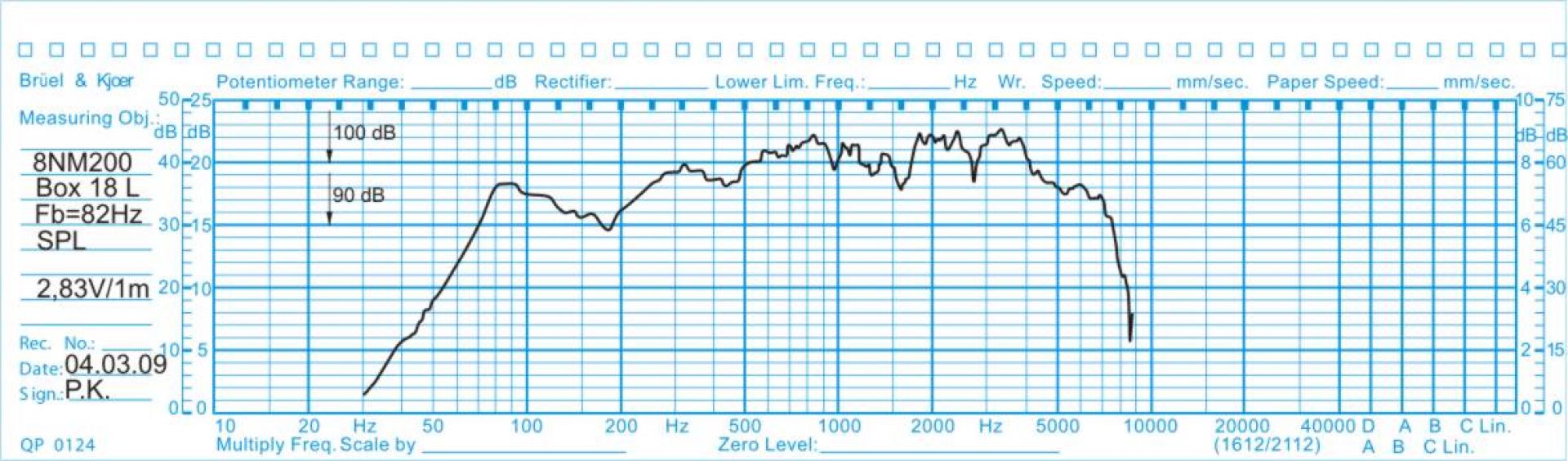

Frequency response 100-4000 Hz
Voice coil diameter 2 inch

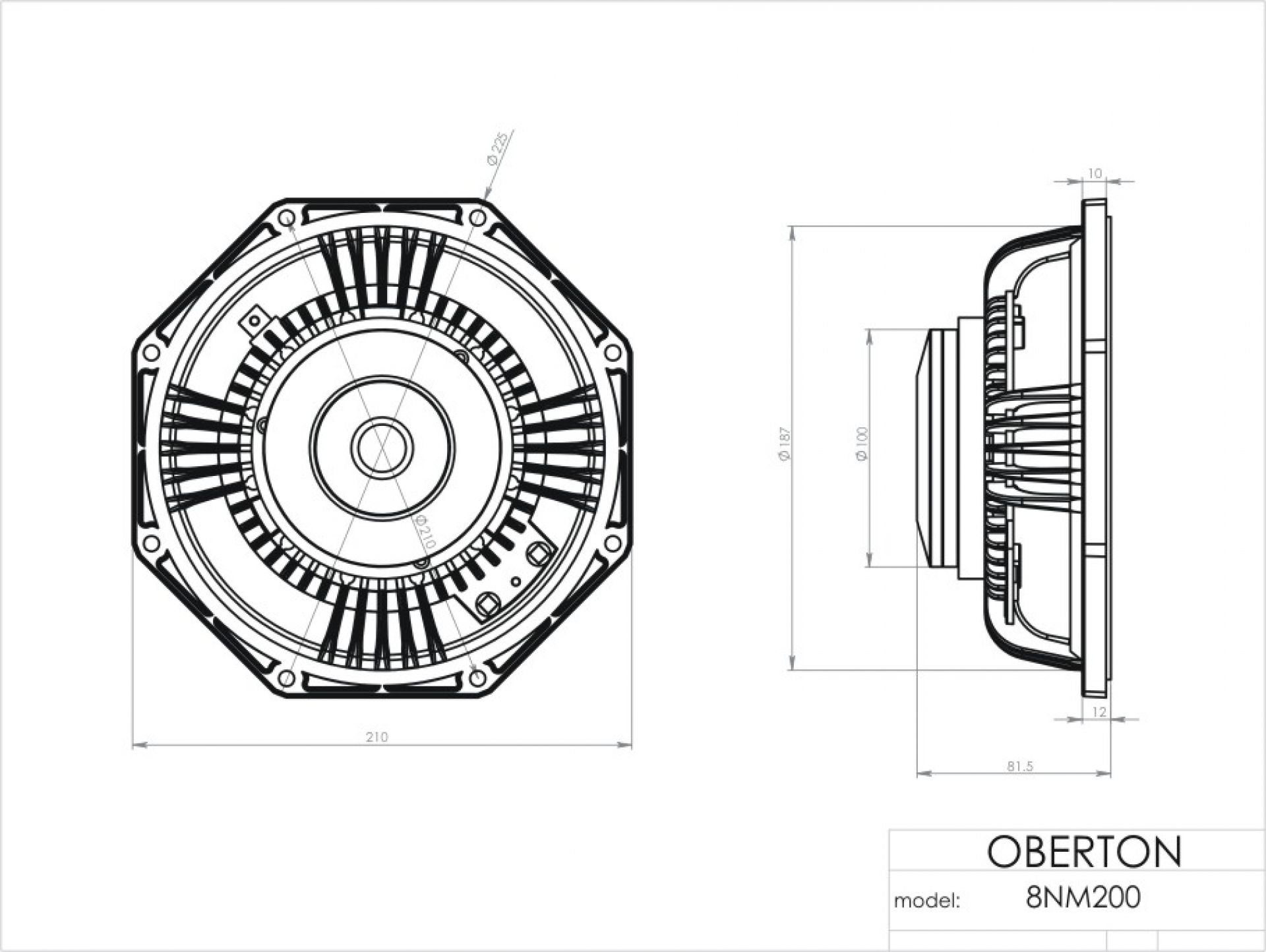

Total external dimensions 210 mm / 225 mm
Mounting diametre 187 mm
Depth after front 69.5 mm
Front thickness 12 mm
Diamètre aimant (mm) 100 mm
Weight 2 kg
Fs 83.9 Hz
Re 5.25 ohm
Qes 0.208
Qms 11.3
Qts 0.204
Vas 12.11 L
Xmax 2.75 mm
Mms 16.6 gr
Le 0.37 mH
EBP 403
Shipping weight 2 kg
