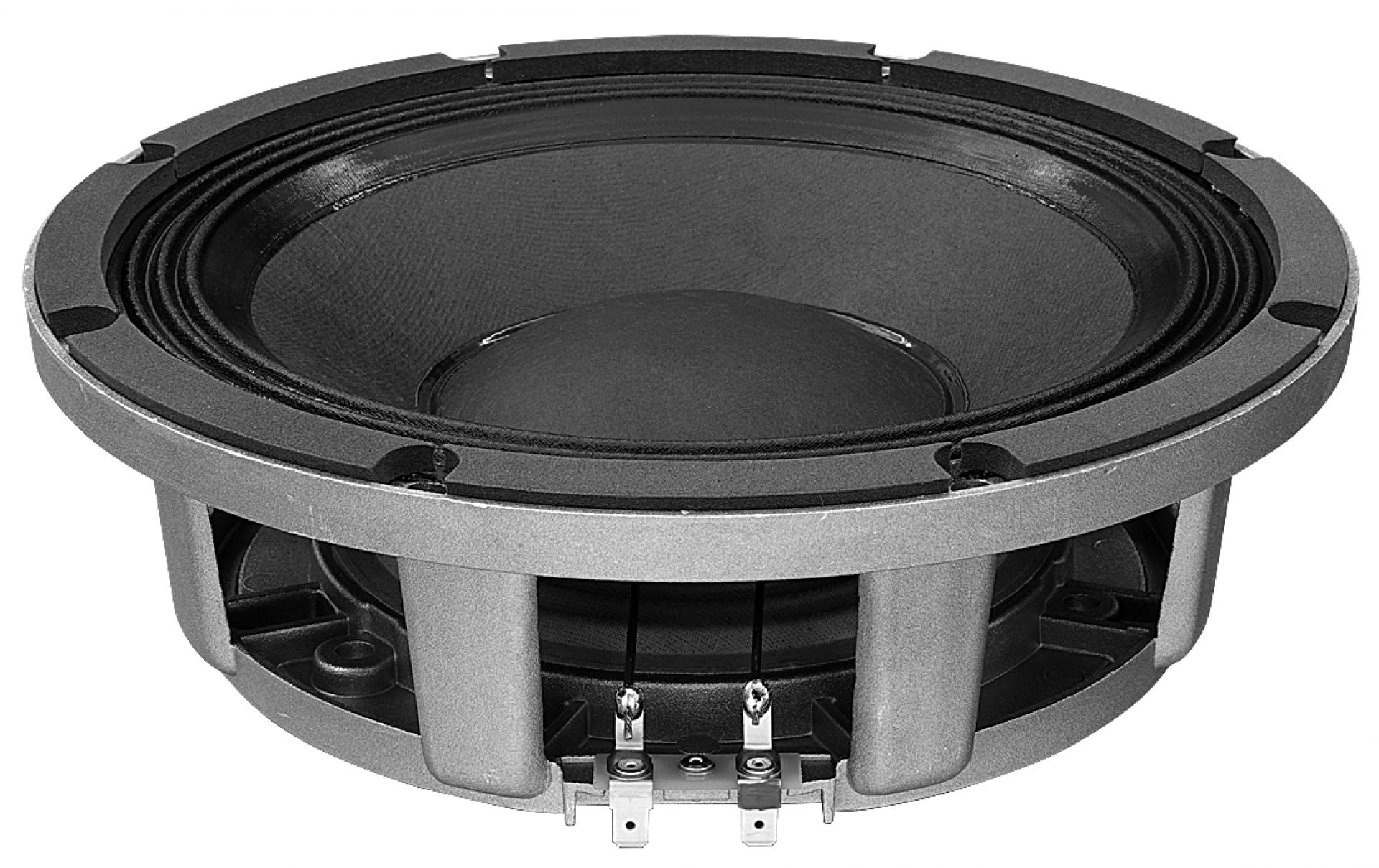

The 10NMB200 neodymium loudspeaker is primary designed to be used bass reflex and hybrid boxes. It features aluminium die cast frame with vented neodymium light weight magnet structure with two demodulating rings.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 10.5 inch
Front chape Cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 200 W
Max power handling 400 W
Sensitivity 98 dB

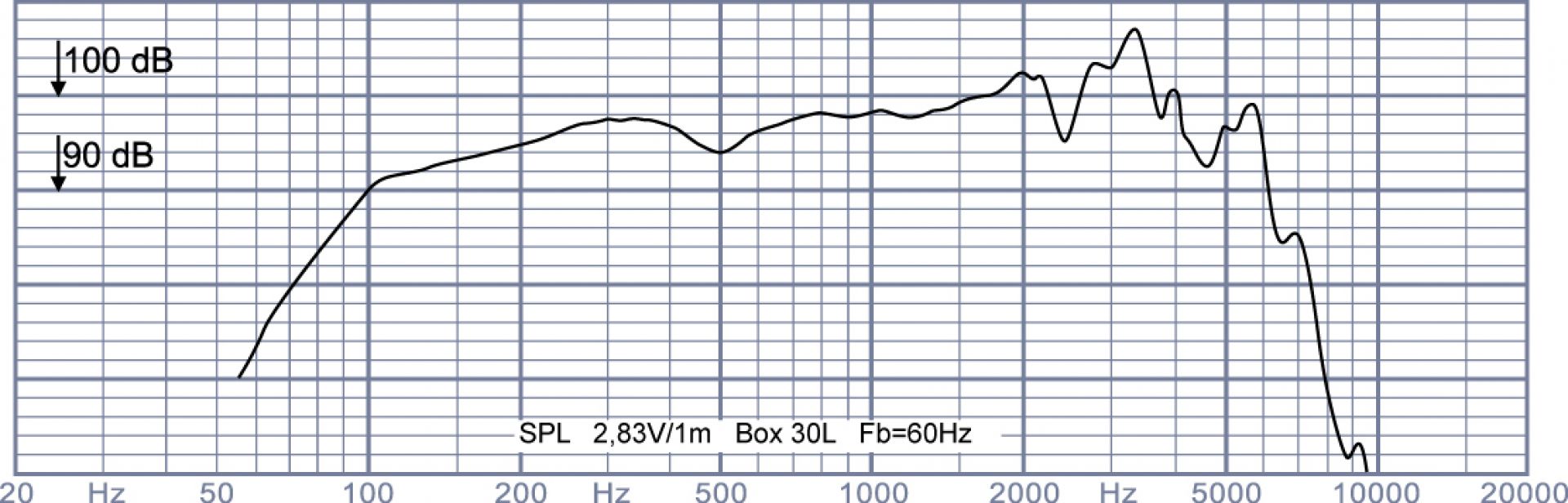

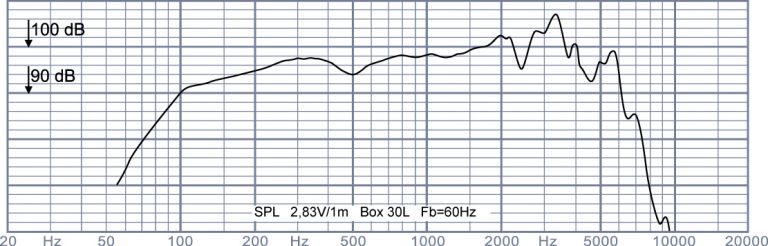

Frequency response 70-4000 Hz
Voice coil diameter 2.5 inch

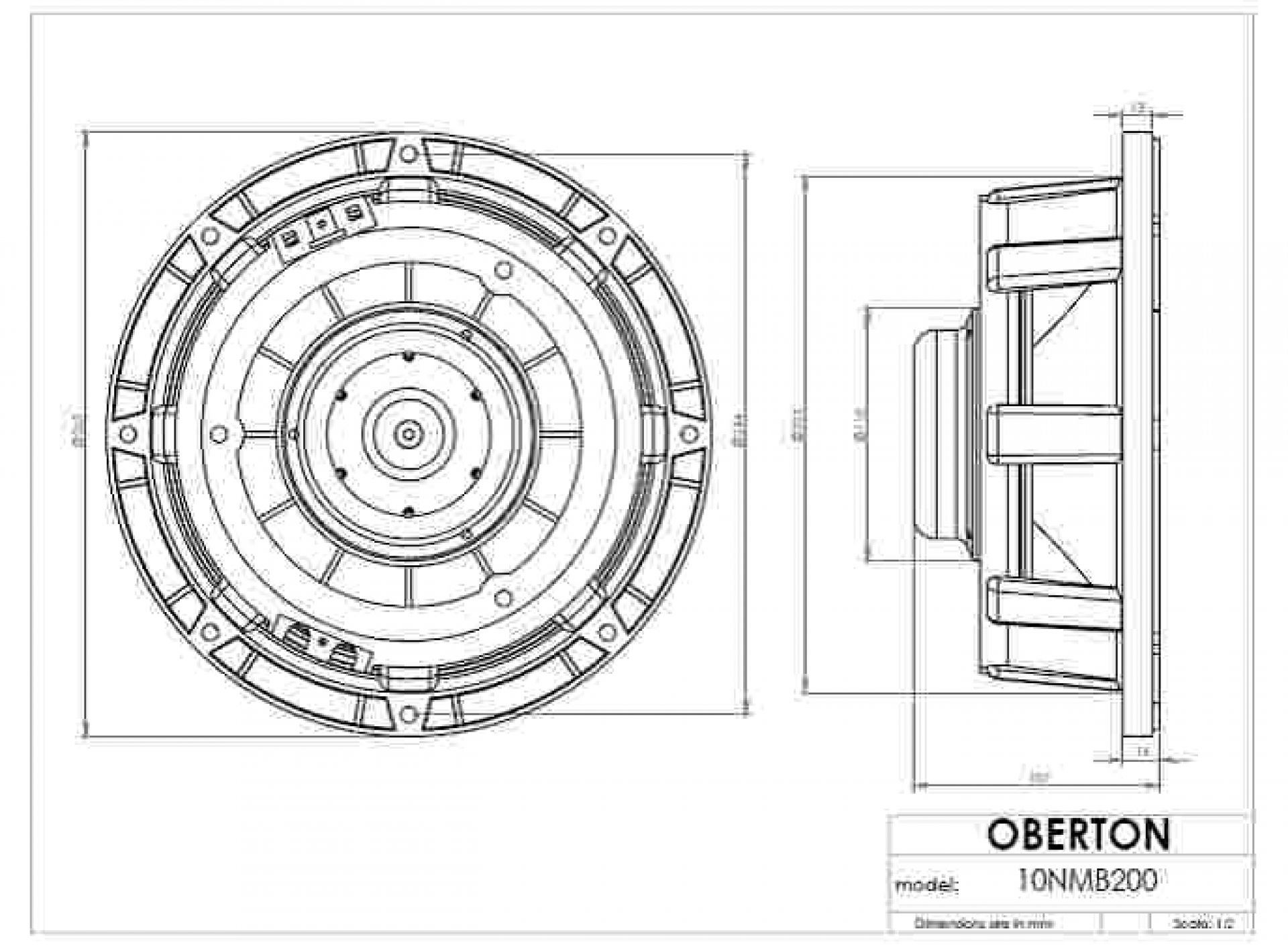

External diametre 263 mm
Mounting diametre 225 mm
Depth after front 91 mm
Front thickness 16 mm
Diamètre aimant (mm) 110 mm
Weight 2.36 kg
Fs 58.67 Hz
Re 5.82 ohm
Qes 0.327
Qms 8.92
Qts 0.316
Vas 34.93 L
Xmax 4.25 mm
Mms 30.21 gr
Le 0.53 mH
EBP 179
Shipping weight 2.36 kg
