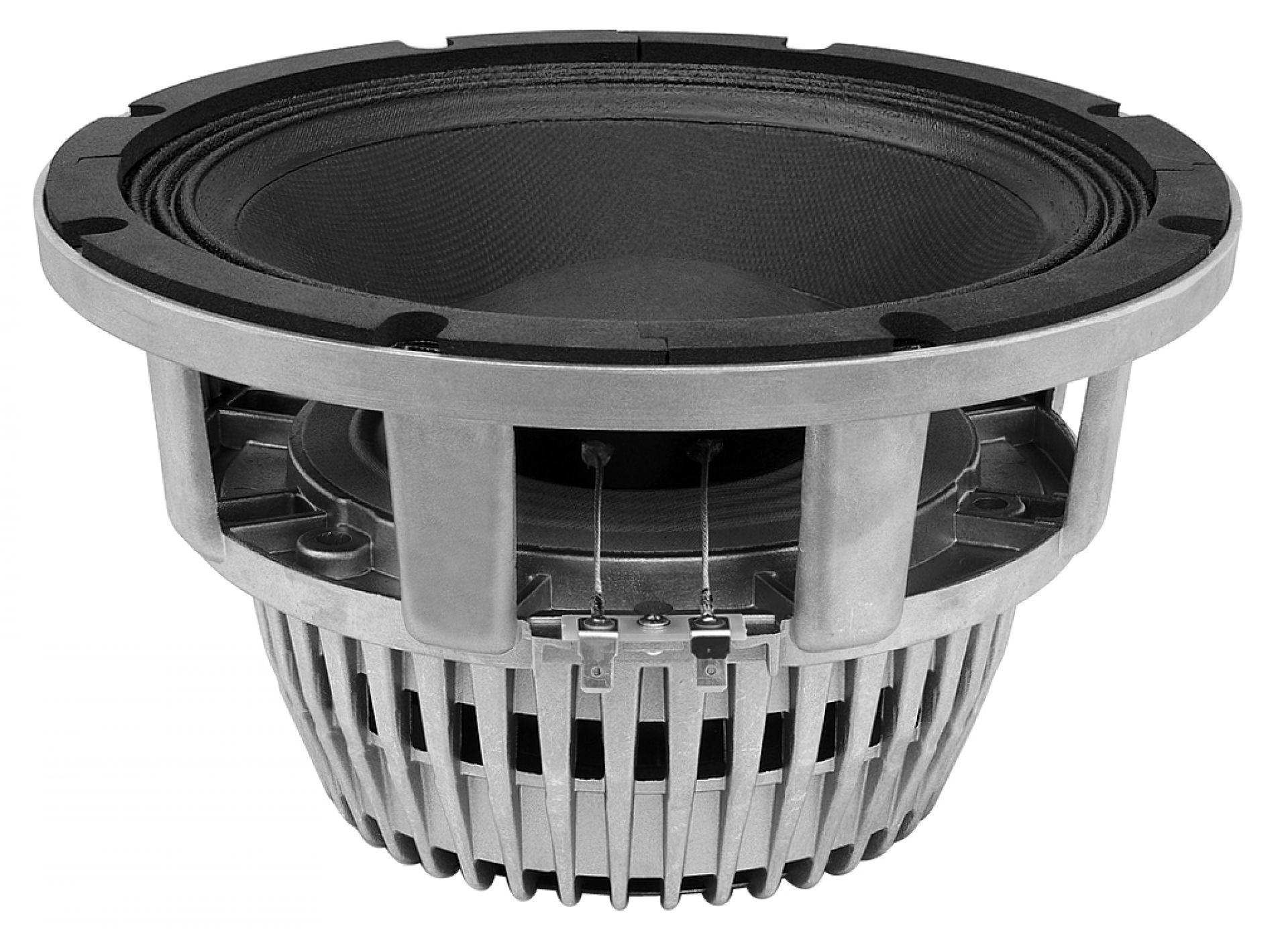

The 10NM300 neodymium loudspeaker is combining high efficiency, wide range and high power handling capability with use of 77 mm aluminium voice coil. It features aluminium die cast frame with vented neodymium magnet structure. The massive heatsink improves the cooling of the magnet structure, which reduce power compression. It is suitable for application as high power midrange or LF driver in 2-way satellite systems.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 10.5 inch
Front chape Cylindrical
Magnet type Neodymium
Nominal impedance 16 ohm
Nominal power handling 400 W
Max power handling 800 W
Sensitivity 100 dB

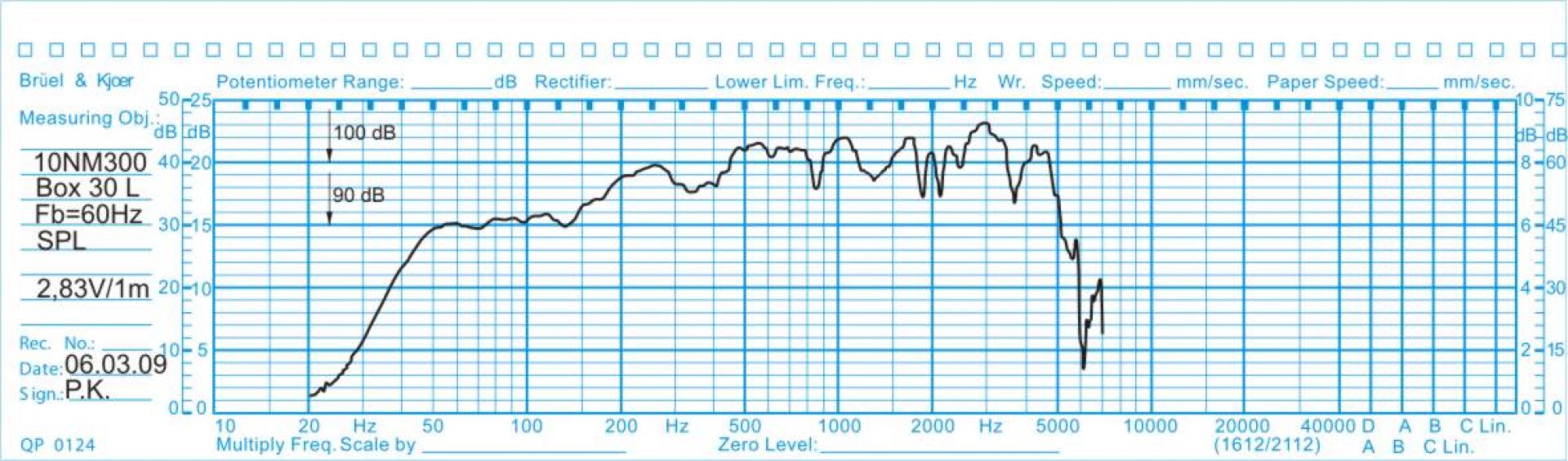

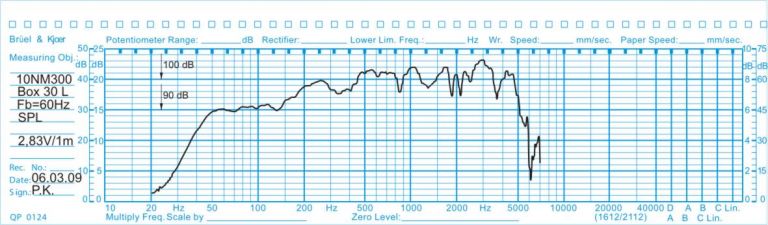

Frequency response 100-4000 Hz
Voice coil diameter 3 inch

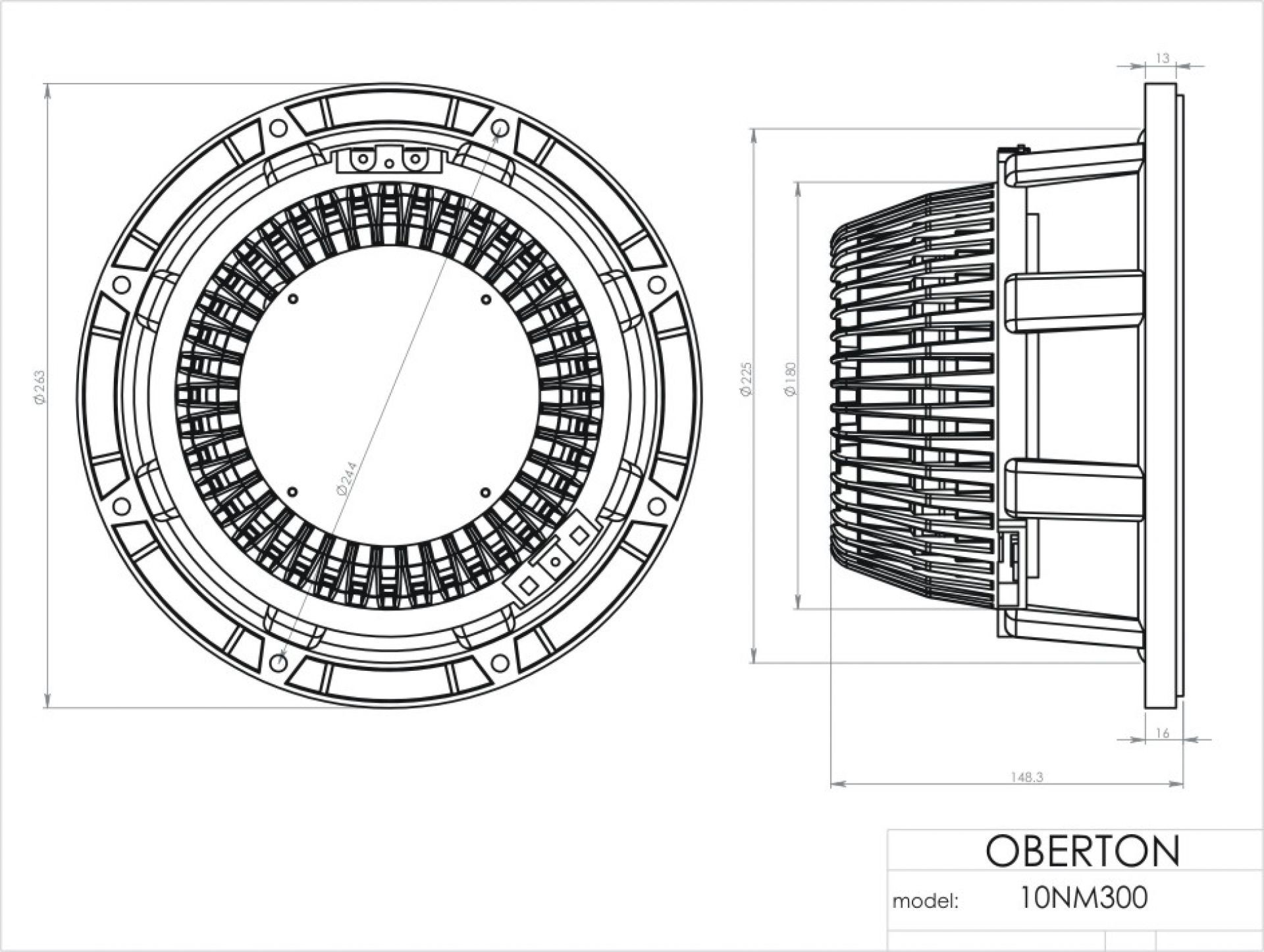

External diametre 263 mm
Mounting diametre 225 mm
Depth after front 132.3 mm
Front thickness 16 mm
Diamètre aimant (mm) 169 mm
Weight 4.75 kg
Fs 71.36 Hz
Re 5.58 ohm
Qes 0.214
Qms 9.15
Qts 0.209
Vas 20.61 L
Xmax 5.25 mm
Mms 34.62 gr
Le 0.62 mH
EBP 333
Shipping weight 4.75 kg
