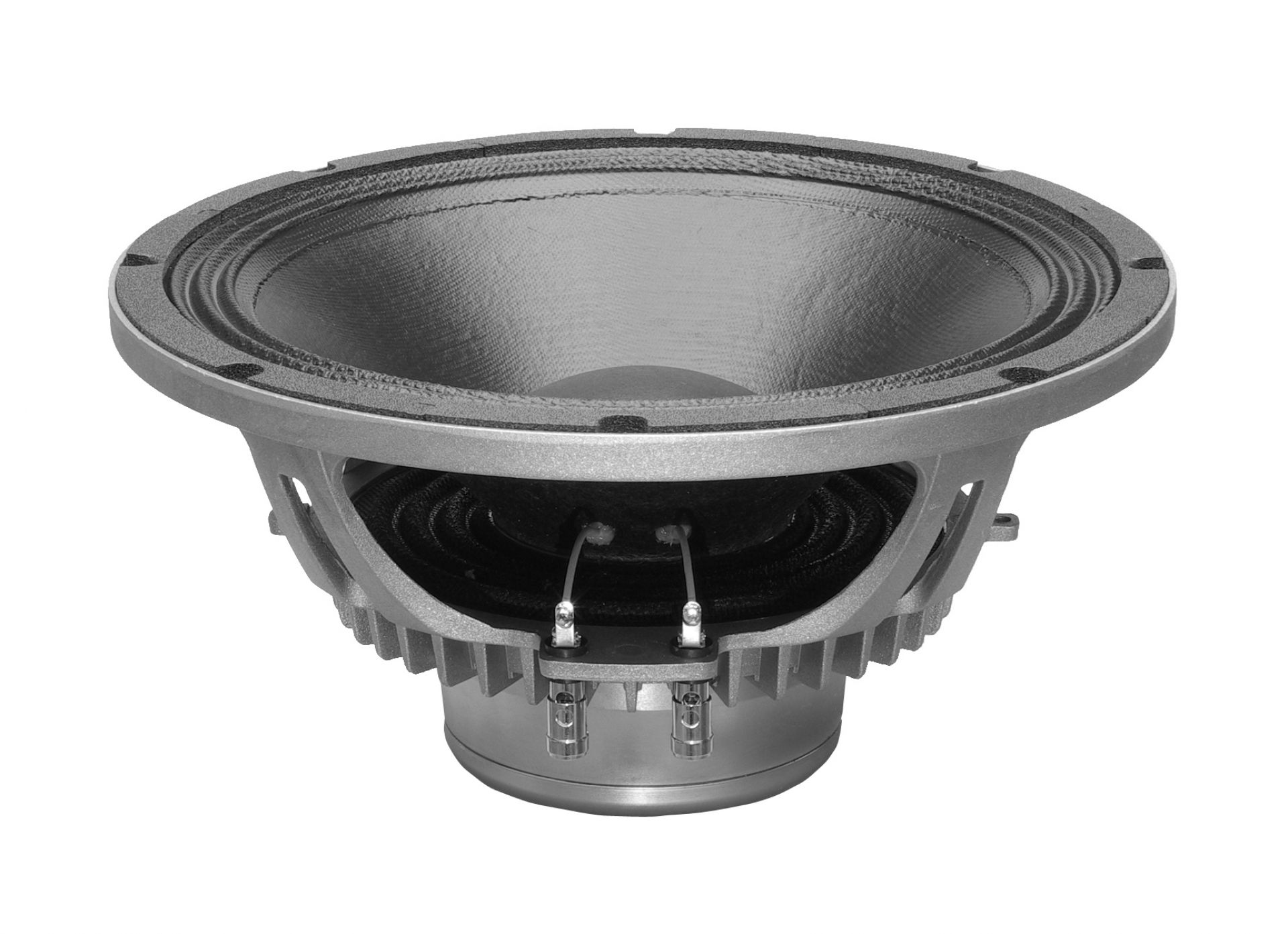

The 12NMB35 loudspeaker is combining good linearity and efficiency with high power handling capabilities, with use of new 3.5” (88 mm) aluminium voice coil. It features vented aluminium die cast frame, neodymium magnet assembly with very light weight with two demodulating rings and curvilinear paper cone. 12NMB35 is suitable for application as LF driver in power stage monitors and 2- way PA boxes.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 12.5 inch
Front chape Cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 600 W
Max power handling 1200 W
Sensitivity 99 dB

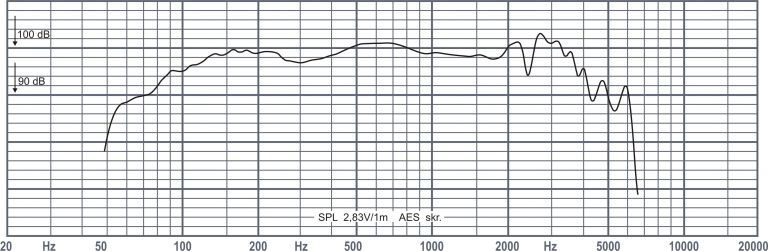

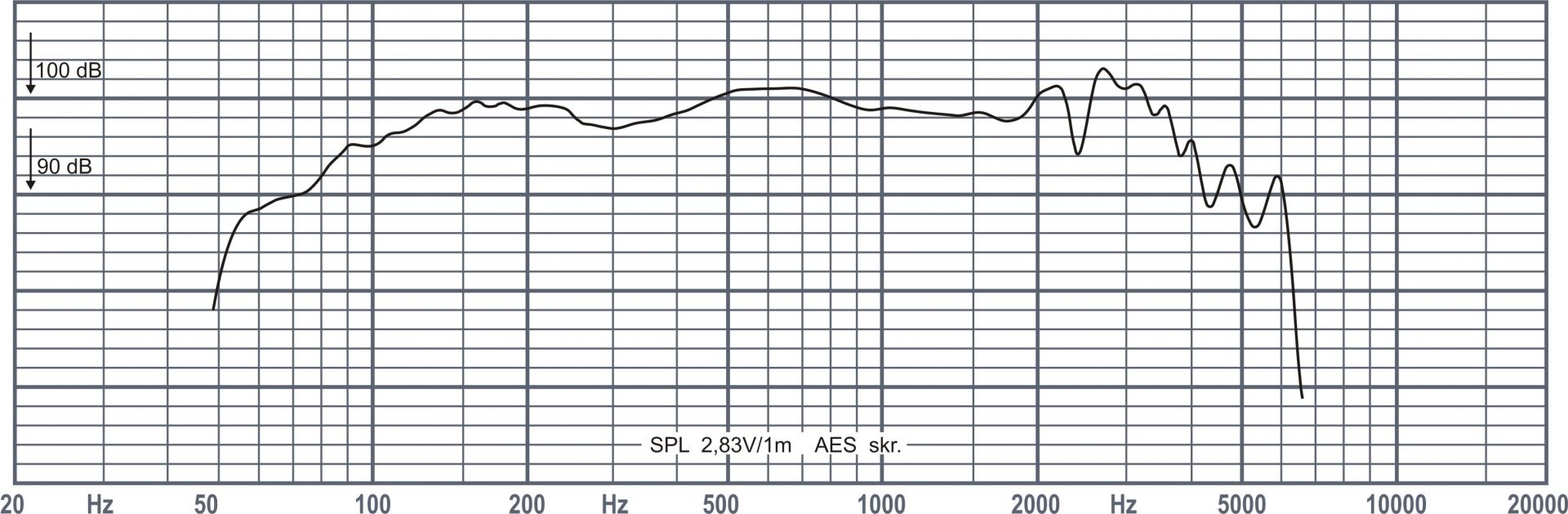

Frequency response 50-3000 Hz
Voice coil diameter 3.5 inch

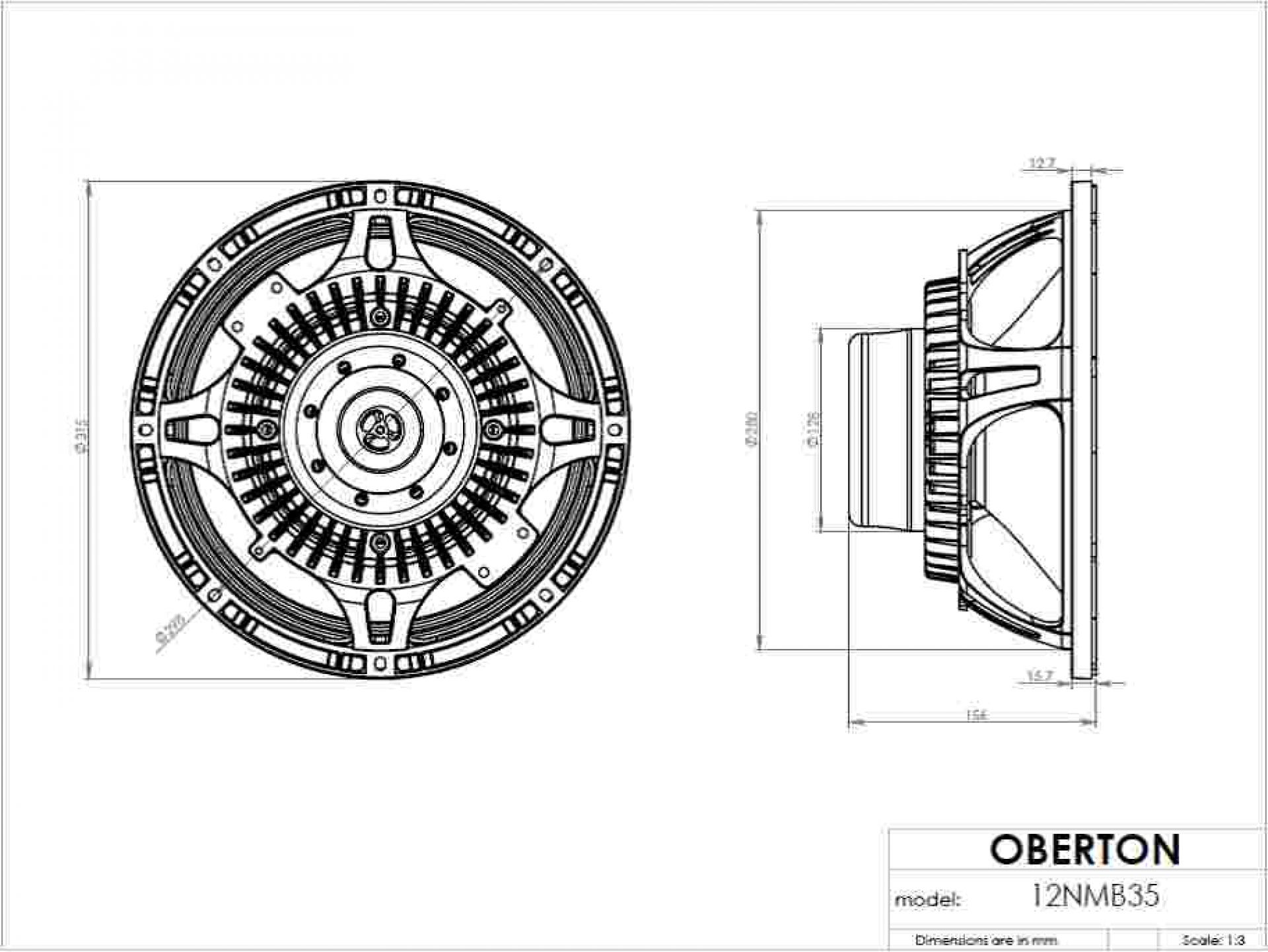

External diametre 315 mm
Mounting diametre 278 mm
Depth after front 141 mm
Front thickness 15.7 mm
Diamètre aimant (mm) 128 mm
Weight 5.05 kg
Fs 55.66 Hz
Re 5.34 ohm
Qes 0.332
Qms 10.316
Qts 0.322
Vas 40.97 L
Xmax 6.75 mm
Mms 73.83 gr
Le 0.757 mH
EBP 168
Shipping weight 5.05 kg
