Application: Power bass

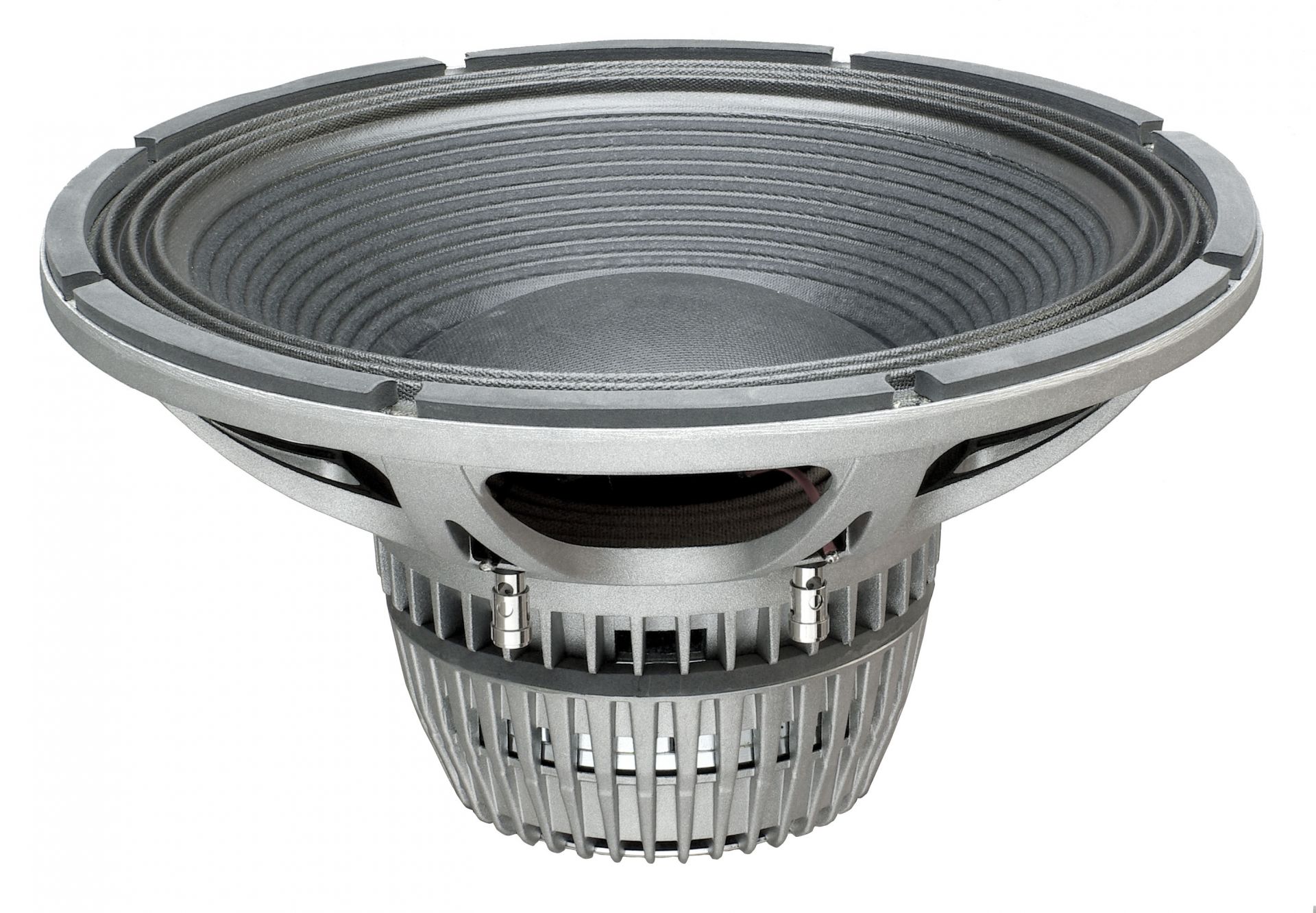

The 15NXB1200 is neodymium bass loudspeaker designed to deliver high impact bass response, with exceptional high power capacity. It features 29 mm high split sandwich voice coil, aluminium die cast frame with triple demodulating rings and vented neodymium magnet structure. The massive heatsink improve the cooling of the magnet structure, which reduce power compression. This results in an incredible high efficient transducer for subwoofer applications, with the ability to handle high excursion with ultra low distortion and reduced thermal power compression. It is suitable for tuned reflex or horn loaded enclosures for high level subwoofer applications.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 18 inch
Front chape Cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 1200 W
Max power handling 2400 W

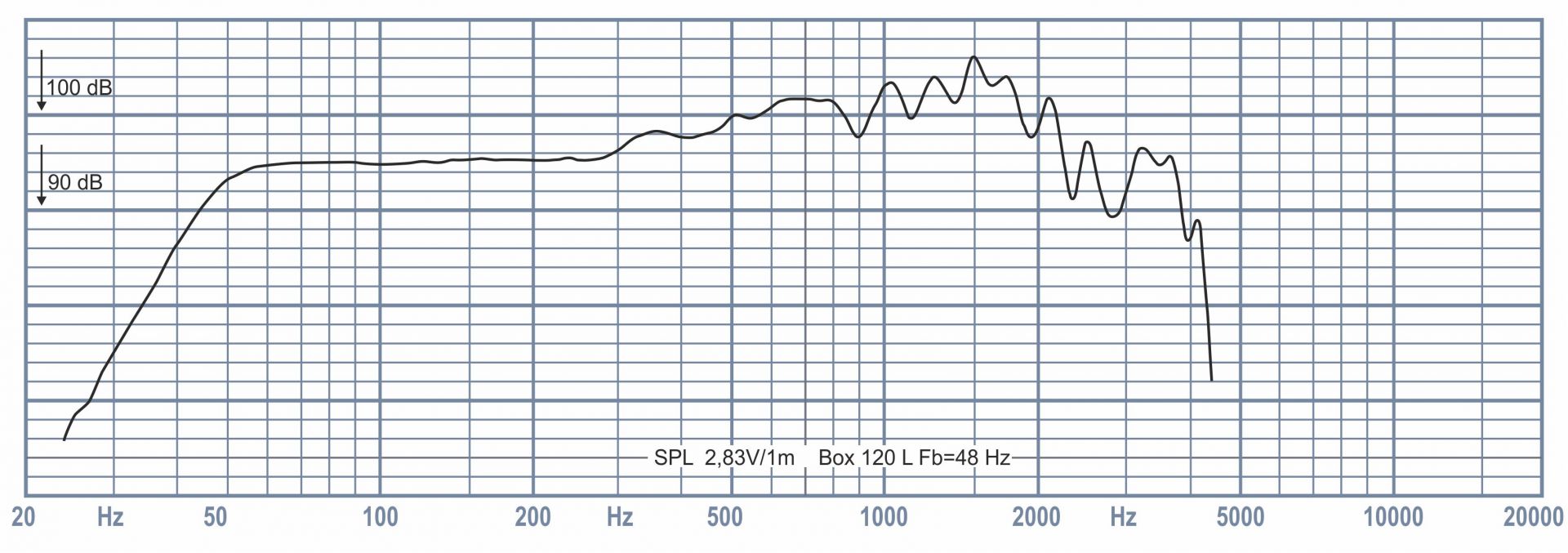

Frequency response 35-1000 Hz
Voice coil diameter 4.5 inch

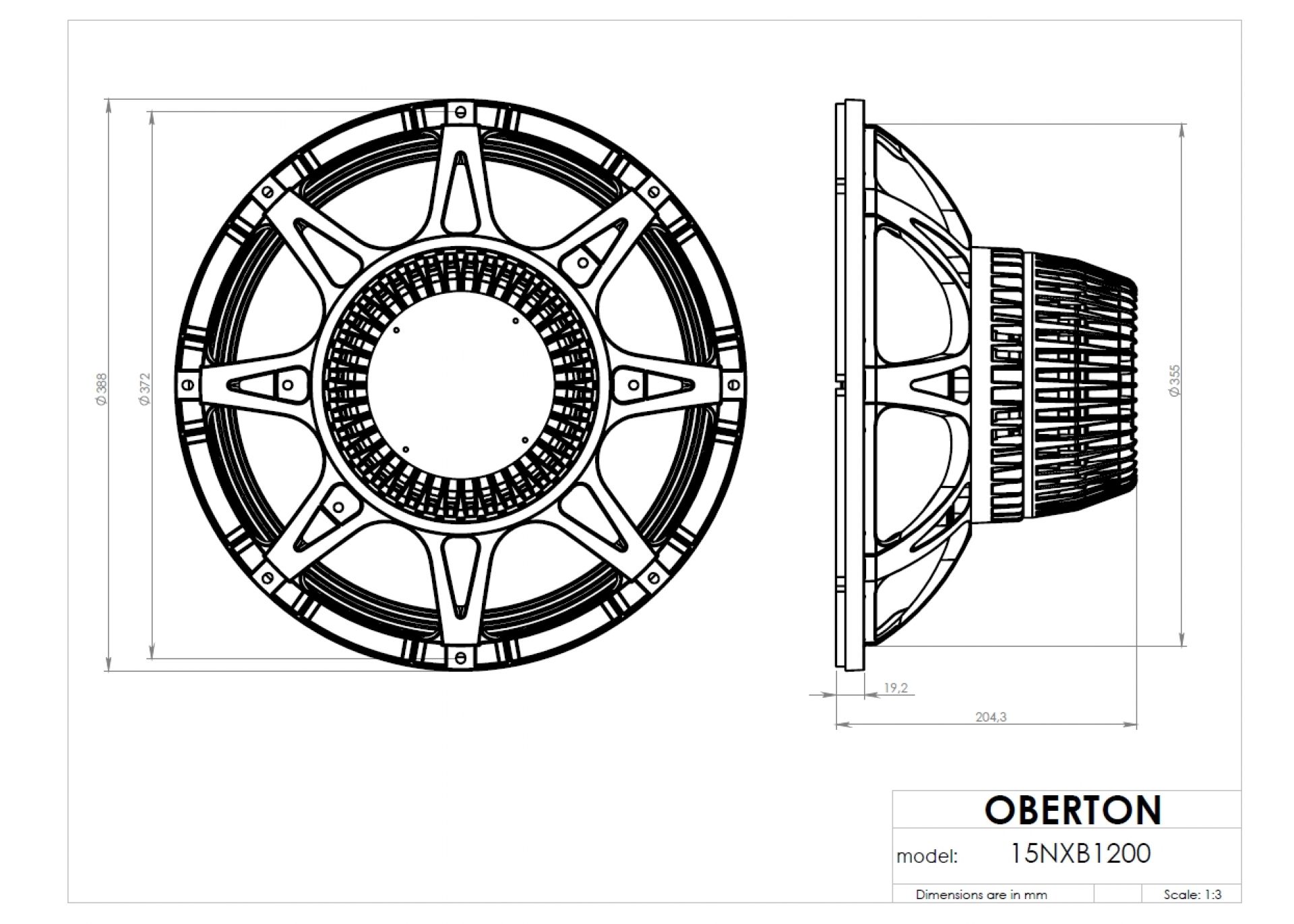

External diametre 461 mm
Mounting diametre 417 mm
Depth after front 204.5 mm
Front thickness 18 mm
Diamètre aimant (mm) 220 mm
Weight 8.95 kg
Fs 35.83 Hz
Re 5.3 ohm
Qes 0.291
Qms 9.24
Qts 0.282
Vas 159.61 L
Xmax 11.5 mm
Mms 212.81 gr
Le 1.29 mH
EBP 123
Shipping weight 8.95 kg
